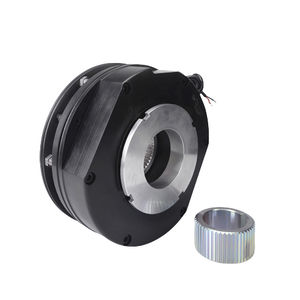

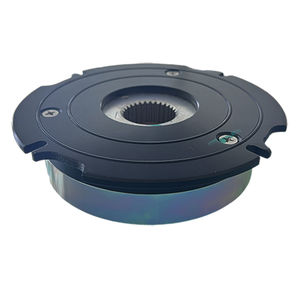

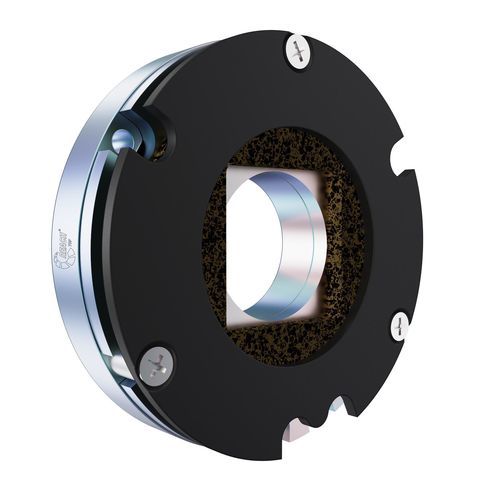

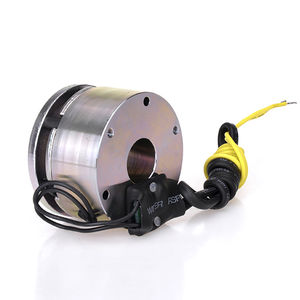

Friction brake springelectromagneticfor servo motors
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Operation
- electromagnetic, spring
- Other characteristics
- zero-backlash, safety, robust, adjustable, shaft-mounted, custom-made, flange-mounted, low-noise, for servo motors, compact, for motors, tension control
- Torque
Max.: 40 Nm
(29.502486 ft.lb)Min.: 0.02 Nm
(0.014751 ft.lb)
Description
- Overexcitation design, low energy consum ption
- Ultra-thin design: as thin as 12mm
- Self-developed and self-made friction plate which solved the power and noise problem
- Fail-safe operation (Power-off engaged): Springs automatically apply the brake when power is removed, preventing unintended movement and enhancing machine safety.
- High holding torque with quick response: Delivers strong, stable braking performance for precise positioning and emergency stops in servo systems.
- Compact and lightweight design: Low profile and low inertia, ideal for integration directly with servo motors without adding significant size or weight.
- Low energy consumption: Power is only required to release the brake; energy-saving during long holding periods.
- Quiet and smooth operation: Minimal noise and vibration, suitable for high-precision environments.
- Versatile mounting: Supports horizontal and vertical installation; available with manual release options and custom voltages.
- Robust durability: Excellent wear resistance, long service life, and reliable performance across a wide temperature range.
