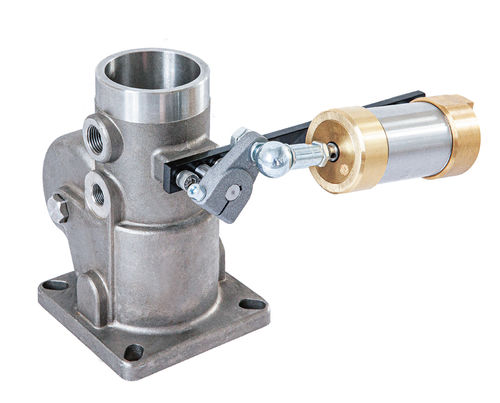

Pneumatic valve SRH pressure-controlfor airstainless steel
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- pressure-control
- Media
- for air
- Material
- stainless steel
- Associated function
- unloading
- Other characteristics
- normally closed, corrosion-resistant, emergency
- DN
65 mm, 90 mm, 120 mm
(2.559 in, 3.543 in, 4.724 in)- Pressure
15 bar
(217.6 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)- Flow rate
Min.: 5 m³/min
(176.57 ft³/min)Max.: 30 m³/min
(1,059.44 ft³/min)
Description
1. Normally closed intake valve, controls pressure input, and opens the intake valve;
2. The entire intake valve adopts a heavy hammer check structure, with small pressure loss and no water spraying during emergency shutdown conditions;
3. The intake valve body and cylinder body are made of stainless steel material, which is resistant to oxidation and corrosion;
4. The loading and unloading control solenoid valve and relief valve (SDV4) need to be ordered separately.
