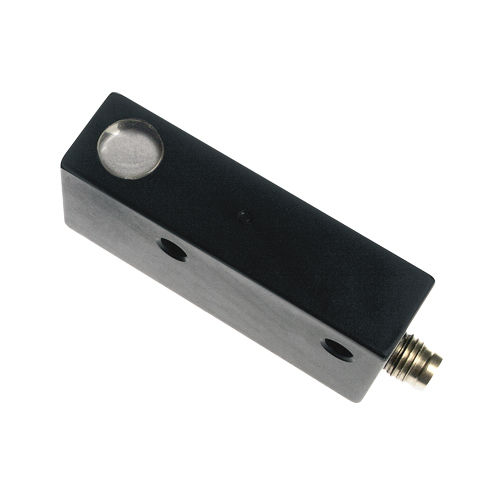

Photoelectric cell ULISSE UPC
Add to favorites
Compare this product
Description
Safety level - Type 2 - PL c
Max. range (m) - 6
Safety level (SIL / PL) - Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic)
Operating temperature (°C) - 0 ... 55
Response time (ms) - 8
Sensor type - Photocells
Safety output type - PNP, max 100 mA light on
MTTFD (ISO13849) years - 100
PFHD (IEC 61508) - 8,04E-09
Safety outputs - 1 PNP max 100 mA light on
Safety functions - With external module
Detection - Access control
Protective enclosures - None
Packaging dimensions HxLxW (mm) - 26 x 52 x 104
Product class - C
Custom tariff - 85414090
Connection type - Connector
