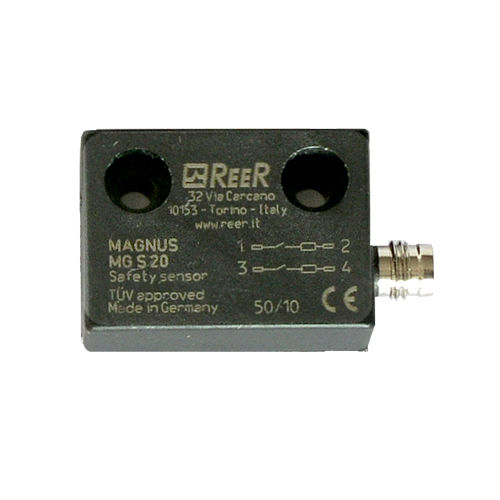

The REER Coded Magnetic Safety Sensors PLe (with Mosaic) / PLd (with MGd1) is basically a magnetic safety sensor with coded magnets. The unit is fabricated in complaint to ISO 13849-1, IEC 61508-1 and IEC 62061.
The coded magnet is tamper proof and can be connected to programmable safety controller mosaic and the dedicated interface MGd1. The Mosaic is certified to reach safety levels of PLe / SIL3.
The housing is made of robust thermoplastic enclosure (PBT) and is IP67 certified. Other features include 4 wires with 2 number of contacts, inbuilt 4 pole and M8 metal connector, switching distance up to 20mm etc. The operating temperature for the device ranges between -25 and +75°C and measures up to 36 x 26 x 13 mm.
