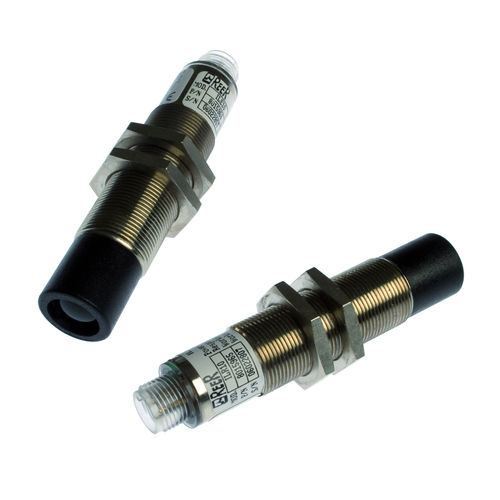

Photoelectric cell ILION series

Safety level - Type 2 - PL c Max. range (m) - 8 Safety level (SIL / PL) - Type 2 - SILCL 1 - PL c - Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic) Operating temperature (°C) - 0 ... 55 Response time (ms) - 7 (photocell only) Sensor type - Photocells Safety output type - PNP, max 100 mA light on MTTFD (ISO13849) years - 100 PFHD (IEC 61508) - 8,04E-09 Safety outputs - 1 PNP max 100 mA light on LED signalling - Status LED on the emitter and receive Safety functions - With external module Detection - Access control Operating Range (m) - Up to 8 Protective enclosures - None Packaging dimensions HxLxW (mm) - 55 x 155 x 85 Product class - C Custom tariff - 85414090 Connection type - Connector
