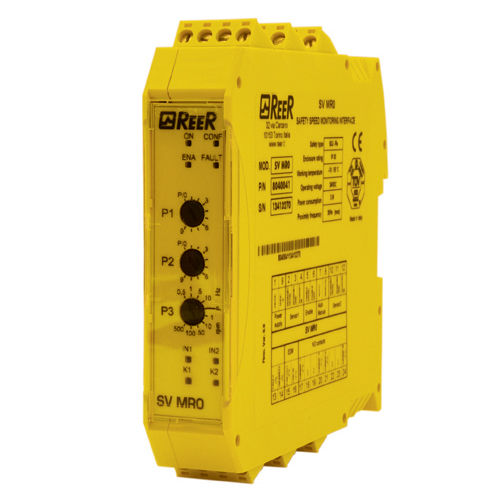

Level monitoring relay SV MR0

speed2 NOemergency stop

Safety speed monitoring interface for overspeed and Zero speed control Safety level up to PL e - SIL 3 - Selectable manual or Automatic restart - EDM feedback input for external contactors monitoring - Enable inputs used, for instance, when monitoring the same axis, in different working phases, with more modules configured with different thresholds - Faults are signalled by LED “Fault” and a PNP system status output. PNP status output indicating overspeed or underspeed thresholds crossing - 2 inputs for PNP proximities switches - 3 front panel selectors allow configuration of the speed threshold Features Safety level - PL e Safety level (SIL / PL) - SIL 3 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - - 40 ... 55 Signalling - LEDs indication for operating status and fault diagnosis Connections - Removable terminal blocks, screw contacts Safety devices to be connected - PNP proximities Safety relay outputs - 2 NO (6A at 250 VAC) Proximity connections - Terminal blocks Max. number of proximity - 2 Max. number of axes - 2 Packaging dimensions HxLxW (mm) - 57 x 158 x 134 Product class - C Custom tariff - 85365080
