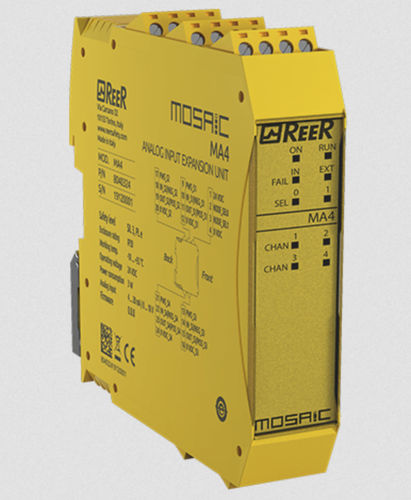

I/O expansion module MA series

relaysecurityanalog

For any application requiring to safely manage analogic sensors such as loading cells, pressure switches, temperature measurements, flow and level measurements, etc. Works with Mosaic M1S and Mosaic M1S COM Main Units only Features Safety level - PL e Safety inputs - 4 analogue inputs Safety level (SIL / PL) - SIL 3 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - - 10 ... 55 Signalling - LEDs indication for operating status and fault diagnosis. LED indication of the analog inputs condition Connections - Removable terminal blocks, screw contacts MTTFD (ISO13849) years - 30 ... 100 PFHD (IEC 61508) - 1,53E-08 Storage temperature (°C) - -20 ... +85 MSC connector provided - Yes Connection with MSC BUS - Yes Detection - Resolution 16 bit with sampling per second from 2,5 SPs to 4000 SPS. Each channel can supply 24 VDC up to 30 mA Packaging dimensions HxLxW (mm) - 36 x 127 x 113 Product class - C Custom tariff - 85371091
