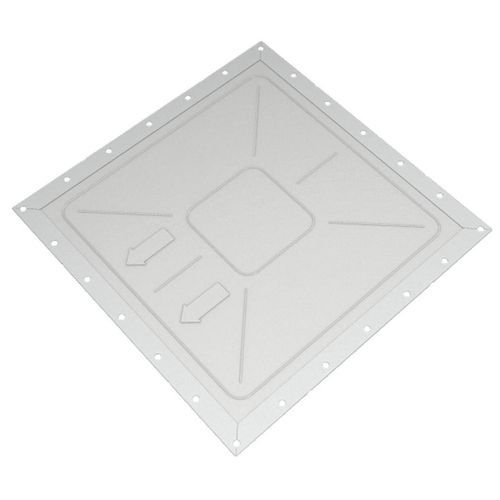

Surface mounted explosion vent BESS.EGV

stainless steel

Product overview
The REMBE® explosion vent BESS.EGV provides dedicated protection for Battery Energy Storage Systems (BESS). It is offered in multiple geometries with customisable burst pressures to suit various BESS designs.

Application
BESS.EGV is intended primarily for roof-mounted installation on BESS enclosures. The standard burst pressure is 0.1 bar at 22 °C, but it can be configured down to 0.025 bar for sensitive designs.

Advantages

• High venting capacity with full-bore opening thanks to low surface weight.
• Enhanced stability and rapid opening via integrated bionic structure.
• Wide range of EGV geometries for optimal adaptation to different BESS layouts.
• Quick, torque-independent installation; no additional counter frame required.
• Space-saving design with integrated gasket and frame.

Mechanism
During a deflagration, the vent opens at predefined breaking points, releasing pressure from the BESS to the surrounding environment and protecting the enclosure.

Technical data — Product parameters
Standard burst pressure (Pstat): 25–500 mbar
Max. permitted operating pressure: 50% of Pstat
Temperature range: –40 to +180 °C (–40 to +356 °F)
Material: Stainless steel
Gasket material: FDA-approved silicone gasket
Tolerance: ±20% at standard burst pressure
Recommended tightening torque for M10 screws: 20 Nm

Applications / Industries

• Battery Energy Storage Systems (BESS)

Certifications

• Meets the requirements of NFPA 68
• ATEX EU type examination certificate no. FSA 04 ATEX 1538 X
• SIL-Equivalent: SIL 4

Recommended software
VENT.iNG. | Calculations according to EN and NFPA standards.

Characteristics / Technical specifications

• Model: BESS.EGV
• Standard burst pressure range: 25–500 mbar (standard default often 0.1 bar at 22 °C; can be customised down to 0.025 bar)
• Max. permitted operating pressure: 50% of Pstat
• Operating temperature range: –40 to +180 °C (–40 to +356 °F)
• Construction material: Stainless steel
• Gasket: FDA-approved silicone gasket
• Tolerance at standard burst pressure: ±20%
• Recommended mounting torque (M10 screws): 20 Nm
• Key benefits: high venting capacity, integrated bionic structure for fast opening, torque-independent installation, integrated gasket and frame for space savings
