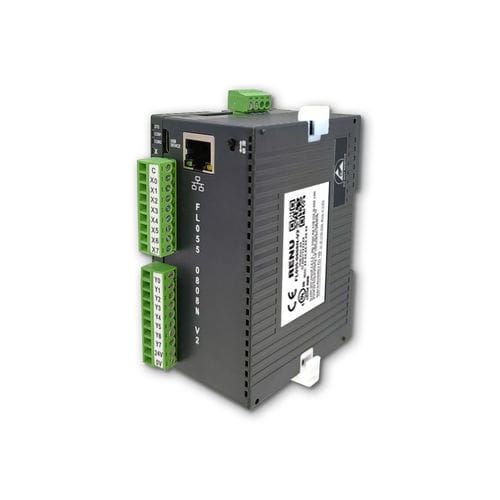

DIN rail PLC FL055-0808N-V2

microanalog inputsdigital input

IEC 61131-3 Programming Environment as standard Bidirectional High-Speed Inputs upto 200KHz with 2 single phase HSC inputs This micro PLC is a complete package of Control and connectivity on a Single hardware. Ideally suited for factory floor operation and small local control it can also be used as a local controller for larger PLC’s connected on Modbus. Incorporates possibility to add other serial or Ethernet protocols on request. This capability gives the PLC to also act as a Gateway for different protocols. For special local requirements or for a few additional I/O, plug in I/O provides support. These modules cover both digital and analogue types. Analogues include linear and non linear analog inputs and load cells. The Analogue modules feature individual channel configuration which greatly reduces the footprint of the installation and optimizes cost. With 2 high-speed single-phase HSC inputs, this PLC can handle up to 4 pairs of 200KHz and upto 25 KHz for the 8inputs. Program Software called Flexisoft is downloadable from website and is without any license. The FL055-0808N-V2 product complies with EMC directive 2014/30/EU and LVD directive 2014/35/EU. It also has approvals for CE, UKCA, RoHS
