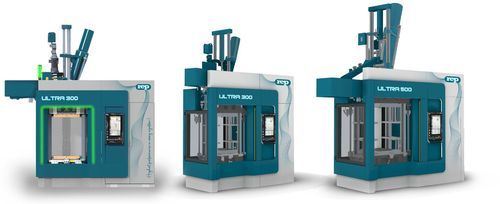

Hydraulic press Ultrafor moldingcompactwith heating plates
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- for molding
- Structure
- compact, with heating plates, hot-platen
- Other characteristics
- hot, high-pressure
- Force
1,600 kN, 3,050 kN, 5,100 kN, 8,200 kN
- Opening
Max.: 950 mm
(37 in)Min.: 350 mm
(14 in)- Table width
Max.: 630 mm
(25 in)Min.: 500 mm
(20 in)- Table length
Max.: 800 mm
(31 in)Min.: 630 mm
(25 in)- Max. pressure
Max.: 2,000 bar
(29,008 psi)Min.: 1,500 bar
(21,756 psi)- Overall length
2,700 mm
(106 in)- Overall width
1,500 mm
(59 in)- Overall height
4,520 mm
(178 in)
Description
Overview
The ULTRA range continues the know-how of REP. Compact, precise presses designed for demanding industrial production. The ULTRA model combines optimized ergonomics with intelligent features and provides access to advanced, fully customizable technology.
Applications
The Ultra presses are suitable for the most demanding processes, engineered for industrial environments that require precision and a compact footprint.
Available documentation
Commercial brochure available (visual shown on the page).
Characteristics / technical specifications
The ULTRA range continues the know-how of REP. Compact, precise presses designed for demanding industrial production. The ULTRA model combines optimized ergonomics with intelligent features and provides access to advanced, fully customizable technology.
Applications
The Ultra presses are suitable for the most demanding processes, engineered for industrial environments that require precision and a compact footprint.
Available documentation
Commercial brochure available (visual shown on the page).
Characteristics / technical specifications
- Locking force: 3050 kN
- Heated platen dimensions: 500 x 630 mm (option 630 x 800 mm)
- Injection volume: 1000 / 2000 / 5000 cc
- Injection pressure: 1500 / 2000 bar
- Width x depth: 2700 x 1500 mm
- Height: 4520 mm
