Corrosion protection coating service Acquaplate

wear-resistantprotectivewaterproof

Description

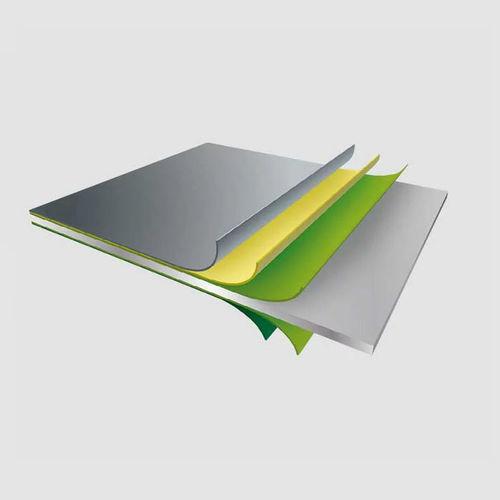

Acquaplate is a coated metal sheet combining mechanical strength and metal compatibility with the weatherproof properties of polypropylene (PP), polyethylene (PE) and PVC-based films. It is intended for construction and industrial sheet applications requiring welding to like materials and easy mechanisation.

General

• Good resistance to roots and corrosion.
• UV resistant.
• Very good resistance to corrosion, dampness and abrasion.
• High folding flexibility.
• Easily mechanised.
• The PVC, PP or PE sheet can be welded to another sheet of the same material.

Product behaviour (table)
DESCRIPTION — TESTING STANDARD — ALTERNATIVE STANDARD — UNIT — RESULT — OBSERVATIONS
Total coating thickness — EN 13523-1 — ASTM D1005 — µ — 500 – 1200 — depending on reference and film type
Specular Gloss (Gardner 60º) — EN 13523-2 — ASTM D523 — % — 10 ± 5 — depending on reference and film type
Colour difference — EN 13523-3 — ASTM E1347 — — ΔE < 1 —
Resistant to rapid deformation — EN 13523-5 — ASTM D2794 — joules — 18 — without detachment
Adherence after Erichsen cupping — EN 13523-6 — ASTM E643 — mm — 8 — without detachment
T Bending — EN 13523-7 — ASTM D522 — — 0T — without cracking or separation
Resistance to salt spray — EN 13523-8 — ASTM B117 — hours — > 2000 —
Resistance to water immersion — EN 13523-9 — ASTM D870 — hours — > 500 — 2 mm max. detachment
Heat ageing — EN 13523-13 — ASTM D3045 — hours — 500 — 120º C: no alteration

Additional information

• Industries: Construction

Characteristics / technical specifications

• Total coating thickness: 500–1200 µ (depending on reference and film type).
• Specular gloss (Gardner 60º): 10 ± 5% (depending on reference and film type).
• Colour difference: ΔE < 1.
• Impact resistance (rapid deformation): 18 J without detachment.
• Erichsen cupping adherence: 8 mm without detachment.
• Bending: 0T without cracking or separation.
• Salt spray resistance: > 2000 hours.
• Water immersion resistance: > 500 hours (max. 2 mm detachment).
• Heat ageing: 500 hours; 120 °C: no alteration.
• Material compatibility: PP, PE and PVC film; PVC/PP/PE sheets can be welded to like materials.
• Properties: mechanical resistance, metal suitability, weathertightness, UV resistance, resistance to corrosion, dampness and abrasion, high folding flexibility, easy mechanisation.
