Corrosion protection coating service Enduraplate

protectivehydro-oleophobicabrasion-resistant

Short description

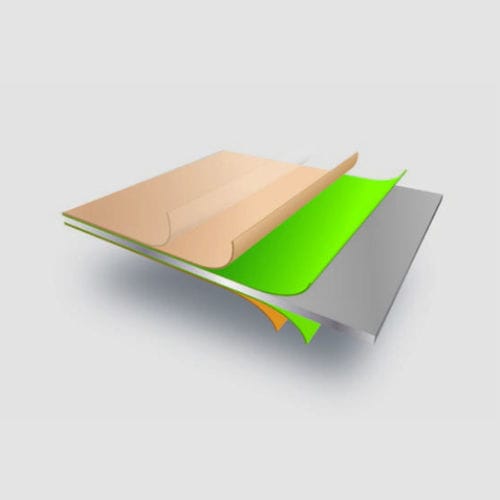

Enduraplate is a coated metal panel based on steel or aluminium covered with Tedlar® PVF film, designed for long-term exterior durability and aesthetic protection in architectural applications and extreme climates. The inert, low-reactivity PVF film has over 50 years of proven durability and reduces building maintenance costs. The film formulation is PFAS-free, offering an environmental alternative to conventional painted finishes.

General

• Chemical resistance (acids, bases, solvents).
• Stain resistant and anti-graffiti properties.
• High mechanical strength with excellent elongation and flexibility; suitable for bending without cracks.
• UV and climatic stability with guaranteed performance over 30 years.
• Suitable for outdoor architectural use.
• Easy to clean and low maintenance.

Product behaviour (testing results)
DESCRIPTION | TESTING STANDARD | UNIT | RESULT | OBSERVATIONS
Total coating thickness | EN 13523-1 / ASTM D1005 | µ | 17 – 47 | Depending on film type
Specular Gloss (Gardner 60º) | EN 13523-2 / ASTM D523 | % | Matt (some references in gloss) |
Pencil hardness | EN 13523-4 / ASTM D3363 | | F – H |
Adherence after Erichsen cupping | EN 13523-6 / ASTM E643 | mm | 6 – 8 | On aluminium / galvanized respectively
T Bending | EN 13523-7 / ASTM D522 | | 0T | No cracking or whitening
Salt spray resistance | EN 13523-8 / ASTM B117 | hours | > 2000 |
Xenotest accelerated ageing | EN 13523-10 / ASTM 06695 | hours | > 7000 | No visible changes
Chemical resistance (window cleaner, nitric and muriatic acid) | AAMA 2605-13 | visual | No attack | After 1 week
Humidity test | AAMA 2605-13 / ASTM D2247 | hours | > 1000 | A Method
Thermal cycling | IEC 61215 | cycles | 200 | -40ºC to +85ºC; no changes observed

Technical characteristics / specifications

• Base metals: steel or aluminium.
• Surface protection: Tedlar® PVF film (registered trademark, used under license).
• PFAS-free film formulation.
• Total coating thickness: 17 – 47 µ (depending on film type).
• Specular gloss: matt; some references available in gloss.
• Pencil hardness: F – H.
• Erichsen cupping (adhesion): 6 – 8 mm (on aluminium / galvanized).
• T bending: 0T with no cracking or whitening.
• Salt spray resistance: >2000 hours.
• Xenotest accelerated ageing: >7000 hours with no visible changes.
• Chemical resistance: no attack after 1 week vs. window cleaner, nitric and muriatic acid.
• Humidity resistance: >1000 hours (A Method).
• Thermal cycling: 200 cycles from -40ºC to +85ºC with no observed changes.
• Properties: stain resistant, anti-graffiti, high mechanical resistance, high elongation and flexibility, outdoor suitability, easy cleaning and low maintenance, UV and climatic stability with warranty >30 years.
• Typical industry application: Construction / architecture.
