Corrosion protection coating service Noraplate

wear-resistantprotectiveabrasion-resistant

Product overview
Noraplate is a high-gloss black paint film designed for decorative automotive trims laminated on stainless steel or aluminium. It delivers a deep, glossy appearance while withstanding thermoforming and common automotive cleaning agents. The construction provides long-term UV resistance, mechanical durability and chemical resistance required for exterior and interior trim applications.

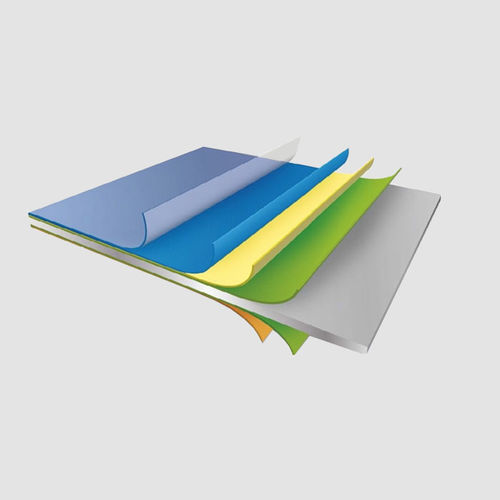

General

• Protective film: 50–75 µ (optional)
• Film thickness: 28–50 (±2) µ
• Adhesive layer: 15 (±5) µ
• Chemical treatment
• Metallic base:
  • Stainless steel according to EN10088
  • Aluminium according to EN485
• Back side primer: 5–10 µ (optional)

Product Behaviour
DESCRIPTION | STANDARD | TEST | UNIT | RESULT | OBSERVATIONS
Total coating thickness | EN 13523-1 | ASTM D1005 | µ | 42 – 44 | Film + adhesive
Specular Gloss (Gardner 60º) | EN 13523-2 | ASTM D523 | % | 90 (±5) | Glossy finish
Visual comparison | EN 13523-3 | ASTM E1347 | — | Pass | Visual
Pencil hardness | EN 13523-4 | ASTM D3363 | scale | F | —
Cross-cut test | EN ISO 2409 | ASTM D3359 | scale | 0-1 | Pass
Cupping test - normal - with scribe | EN 13523-6 | ASTM E643 | mm | Pass / Pass | Cupping 8 mm
T Bend test | EN 13523-7 | ASTM D522 | — | 0.5-1T | No whitening, no cracking
Resistance to salt spray | EN 13523-8 | ASTM B117 | hours | > 500 | Pass
Taber abrasion (CS 10, 500 g) - After humidity | UNE 48250 | ASTM D4060 | cycles | 750 | No metal affected, slight coating wear
Resistance to accelerated Xenotest ageing test | EN 13523-10 | ASTM D6695 | hours | > 5000 | No visual changes, no gloss loss
Humidity test | EN 6270-2 | ASTM D2247 | hours | 240 | Pass
Heat cycle - 80ºC / 15 days | N/A | — | days | Pass | No visual change
Chemical resistance after 24 hours (sulfuric acid, sodium hydroxide and sodium chloride) | N/A (internal) | 0.1N H2SO4; 0.1N NaOH; 3% NaCl | hours | Pass | No discoloration
Commercial cleaning agents (immersion) – Car shampoo (24 h) – Window cleaner (1 h) – Polish wax (10 min) | — | — | hours | Pass | No surface changes

Industries

• Automotive

Characteristics / technical specifications

• Product name: Noraplate
• Type: High-gloss black paint film for metal (decorative automotive trims)
• Applicable substrates: Stainless steel (EN10088), Aluminium (EN485)
• Film thickness: 28–50 (±2) µ
• Adhesive layer: 15 (±5) µ
• Protective film (optional): 50–75 µ
• Back side primer (optional): 5–10 µ
• Total coating thickness (film + adhesive): 42–44 µ
• Specular gloss (Gardner 60º): 90 (±5)%
• Pencil hardness: F
• Cross-cut: 0-1 (pass)
• Cupping: Pass (8 mm)
• T Bend: 0.5-1T (no whitening, no cracking)
• Salt spray resistance: >500 hours (pass)
• Taber abrasion after humidity: 750 cycles (no metal affected)
• Xenotest accelerated ageing: >5000 hours (no visual or gloss change)
• Humidity test: 240 hours (pass)
• Chemical resistance (0.1N H2SO4, 0.1N NaOH, 3% NaCl): pass, no discoloration
