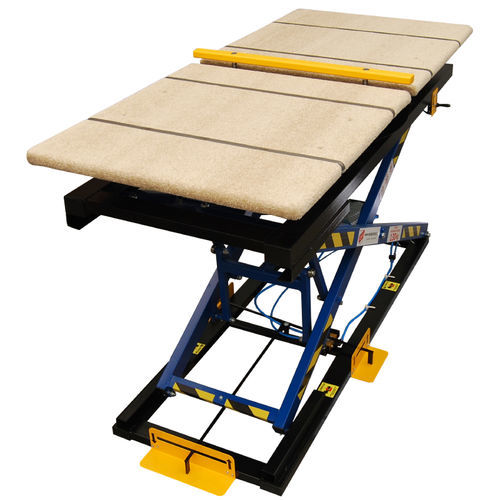

Scissor lift table ST-3/O/Cpneumaticfoot-operatedstationary
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- foot-operated, pneumatic
- Type
- stationary
- Application
- loading
- Other characteristics
- with rotary plate
- Capacity
Min.: 130 kg
(286.6 lb)Max.: 130 kg
(286.6 lb)- Lowered height
Min.: 430 mm
(17 in)Max.: 430 mm
(17 in)- Lifting height
Min.: 1,380 mm
(54 in)Max.: 1,380 mm
(54 in)- Stroke
950 mm
(37.4 in)- Tray length
Min.: 200 cm
(78.74 in)Max.: 200 cm
(78.74 in)- Tray width
Min.: 90 cm
(35.43 in)Max.: 90 cm
(35.43 in)
Description
Product description
The ST-3/O/C pneumatic lifting table is designed for packaging sofa components. It features a swivel, carpet-covered tabletop with steel sliding rails and a spring brake that locks the tabletop every 90°. A pneumatically controlled positioning beam assists in lifting heavy sofa elements to facilitate packaging operations (for example, placing protective cardboard corners). The table includes an additional pedal so height can be adjusted from three sides. An optional complementary device is the Foil Unwinding and Cutting Table K2-0597 (sold separately).
Key features
Specifications
Model: ST-3/O/C
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 2000 mm x 900 mm (78.74" x 35.43")
Pneumatic cylinder: D125x600, 2x 1501.64.0050
Minimum height: 430 mm (16.9")
Maximum height: 1380 mm (54.3")
Maximum load: 130 kg (286.6 lbs)
Characteristics / technical specifications
The ST-3/O/C pneumatic lifting table is designed for packaging sofa components. It features a swivel, carpet-covered tabletop with steel sliding rails and a spring brake that locks the tabletop every 90°. A pneumatically controlled positioning beam assists in lifting heavy sofa elements to facilitate packaging operations (for example, placing protective cardboard corners). The table includes an additional pedal so height can be adjusted from three sides. An optional complementary device is the Foil Unwinding and Cutting Table K2-0597 (sold separately).
Key features
- Robust steel profile frame with pneumatic cylinder.
- Pneumatic cylinder operated by foot pedal; additional pedal for multi-side adjustment.
- Connection slot for pneumatic tools.
- Automatic locking when the table is turned off (power cut does not cause tabletop descent).
- Optional drawer available for upholstery tools.
- Energy consumption reduced by approximately 15% versus conventional upholstery trestles.
- Observed productivity increase of at least 14% when replacing traditional trestles.
Specifications
Model: ST-3/O/C
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 2000 mm x 900 mm (78.74" x 35.43")
Pneumatic cylinder: D125x600, 2x 1501.64.0050
Minimum height: 430 mm (16.9")
Maximum height: 1380 mm (54.3")
Maximum load: 130 kg (286.6 lbs)
Characteristics / technical specifications
- Model: ST-3/O/C
- Working pressure: 6 bar (87 PSI)
- Tabletop dimensions: 2000 mm x 900 mm
- Pneumatic cylinder: D125x600, 2x 1501.64.0050
- Minimum height: 430 mm
- Maximum height: 1380 mm
- Maximum load: 130 kg
- Swivel carpet-covered tabletop with steel sliding rails and spring brake locking every 90°
- Pneumatically controlled positioning beam for lifting heavy sofa elements
- Foot-controlled pneumatic cylinder; additional pedal for adjustment from three sides
- Connection slot for pneumatic tools; optional drawer for upholstery tools
- Optional compatible device: Foil Unwinding and Cutting Table K2-0597 (sold separately)
