Scissor lift table ST-3 HDK ROL 3000
pneumaticstationaryloading

Scissor lift table - ST-3 HDK ROL 3000 - REXEL - pneumatic / stationary / loading

Scissor lift table - ST-3 HDK ROL 3000 - REXEL - pneumatic / stationary / loading

Scissor lift table - ST-3 HDK ROL 3000 - REXEL - pneumatic / stationary / loading - image - 2

Scissor lift table - ST-3 HDK ROL 3000 - REXEL - pneumatic / stationary / loading - image - 3

Scissor lift table - ST-3 HDK ROL 3000 - REXEL - pneumatic / stationary / loading - image - 4

Scissor lift table - ST-3 HDK ROL 3000 - REXEL - pneumatic / stationary / loading - image - 5

Add to favorites

Compare this product

Go to the REXEL website for more information

Characteristics

Technology: scissor
Operation: pneumatic
Type: stationary
Application: loading, for heavy loads, for workshops
Capacity: 320 kg
(705.5 lb)
Lowered height: 320 mm
(13 in)
Lifting height: 1,270 mm
(50 in)

Description

Product description

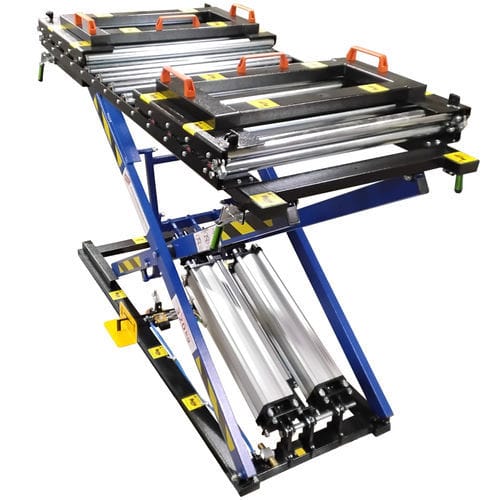

The ST-3 HDK ROL 3000 pneumatic lifting table is fitted with a roller conveyor in place of a solid tabletop. The rollers reduce surface friction and enable manual movement of materials without applied force. Foldable roller-conveyor side sections are mechanically locked in the working position using handles to ensure stability and safe operation. Designed to lift heavy items up to 320 kg, the table is equipped with two pneumatic cylinders that support the entire structure. Moving parts are supported by reinforced profiles to increase durability. A hydraulic braking system prevents the table from bouncing.

Key features

Solid construction based on steel profiles and pneumatic cylinders.
Pneumatic cylinders are foot-controlled.
Connection slot for pneumatic tools.
Automatic locking after shutdown (cutting power does not make the table fold).
Approximately 15% energy savings compared to traditional upholstery trestles.
Observed productivity increase of at least 14% compared to traditional trestles.

Technical specifications

Model: ST-3 HDK ROL 3000
Operating pressure: 6 bar (87 psi)
Tabletop dimensions: 3000 mm x 900 mm (118.1" x 35.4")
Pneumatic cylinders: 2 x D125 x 600 mm
Minimum height: 320 mm (12.6")
Maximum height: 1270 mm (50.0")
Maximum load capacity: 320 kg (705 lb)
Foldable roller-conveyor side sections mechanically locked with handles
Hydraulic braking system to prevent bouncing
Reinforced profiles supporting moving parts for increased durability
