Scissor lift table ST-7 KRB B
pneumaticfoot-operatedstationary

Scissor lift table - ST-7 KRB B - REXEL - pneumatic / foot-operated / stationary

Scissor lift table - ST-7 KRB B - REXEL - pneumatic / foot-operated / stationary

Scissor lift table - ST-7 KRB B - REXEL - pneumatic / foot-operated / stationary - image - 2

Scissor lift table - ST-7 KRB B - REXEL - pneumatic / foot-operated / stationary - image - 3

Add to favorites

Compare this product

Go to the REXEL website for more information

Characteristics

Technology

scissor

Operation

foot-operated, pneumatic

Type

stationary

Application

for heavy loads, for workshops, for assembly

Other characteristics

precision, with safety barrier

Capacity

320 kg
(705.5 lb)

Lowered height

320 mm
(13 in)

Lifting height

Min.: 320 mm
(13 in)

Max.: 1,255 mm
(49 in)

Stroke

600 mm
(23.62 in)

Tray length

214 cm
(84.25 in)

Tray width

140 cm
(55.12 in)

Description

Description

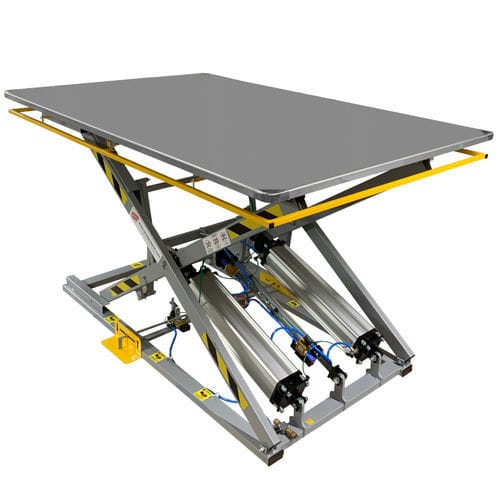

The ST-7 KRB B pneumatic lifting table is designed for safe height adjustment and handling of upholstered and heavy furniture up to 320 kg. It features two pneumatic cylinders mounted on reinforced steel profiles, a stainless-steel covered tabletop and a widened 1000 mm frame to ensure improved lateral stability. A safety frame prevents further lowering on obstruction, a hydraulic braking system prevents bouncing and the unit locks automatically if air supply is cut.

Key features

Steel profile structure with two pneumatic cylinders (2× D125×600).
Foot control for hands-free, precise height adjustments.
Integrated inlet for pneumatic tools.
Automatic locking on power/air supply loss to prevent unintended descent.
Hydraulic braking system to avoid tabletop rebound.
Widened frame (1000 mm) for increased stability.
Energy savings ≈15% and observed productivity increase ≈14% vs traditional upholstery trestles.

Technical data

Model: ST-7 KRB B 1400×2140
Working pressure: 6 bar (87 psi)
Tabletop dimensions: 2140 mm × 1400 mm
Pneumatic cylinders: 2× D125×600
Height range: 320 mm – 1255 mm
Maximum load capacity: 320 kg (705 lbs)
Tabletop covering: stainless steel
Frame width: 1000 mm

Applications

Upholstery workshops and furniture production lines
Repair, refurbishment and assembly stations
Industrial handling of heavy or bulky soft-furnishing components
