Scissor lift table ST-8
pneumaticmobileroller

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller - image - 2

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller - image - 3

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller - image - 4

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller - image - 5

Scissor lift table - ST-8 - REXEL - pneumatic / mobile / roller - image - 6

Add to favorites

Compare this product

Go to the REXEL website for more information

Characteristics

Technology

scissor

Operation

pneumatic

Type

mobile

Other characteristics

roller

Capacity

Max.: 50 kg
(110.2 lb)

Min.: 50 kg
(110.2 lb)

Lowered height

Max.: 350 mm
(14 in)

Min.: 350 mm
(14 in)

Lifting height

Max.: 950 mm
(37 in)

Min.: 350 mm
(14 in)

Tray length

Max.: 95 cm
(37.4 in)

Min.: 95 cm
(37.4 in)

Tray width

Max.: 55 cm
(21.65 in)

Min.: 55 cm
(21.65 in)

Description

Overview

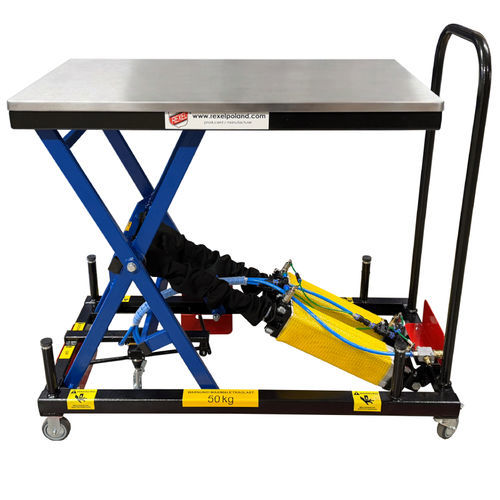

The ST-8 mobile pneumatic scissor lift table is designed for handling and transporting loads up to 50 kg (110.23 lbs) in industrial environments (e.g. bags of concrete, machine parts, metal castings, tools, heavy cardboard boxes). The table runs on casters with brake and has a stainless steel covered tabletop. A control valve allows the table to be set to minimum or maximum height positions only. Foot-operated control pedals are located on both sides. Detachable ergonomic handle enables easy movement, compact transport and storage.

Key features

Steel profile construction with two pneumatic cylinders.
Foot-controlled pneumatic cylinders for safe lifting/lowering.
Connection slot for pneumatic tools integrated into the table.
Disconnection of the air supply does not cause the table to fold.
Proven energy consumption reduction of 15% compared to upholstery trestles.
Observed productivity increase of at least 14% when replacing traditional trestles with the lift table.

Specifications

Model: ST-8
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 950 mm x 550 mm (37.4 in × 21.65 in)
Pneumatic cylinder: 2x D80x290
Minimum height: 350 mm (13.78 in)
Maximum height: 950 mm (37.40 in)
Maximum load: 50 kg (110.23 lbs)
Overall size (LxWxH): 1100 x 550 x 1070 mm (43.31 in × 21.65 in × 42.13 in)

Technical specifications

Casters with brake for fixed positioning
Stainless steel covered tabletop for easy cleaning
Foot-controlled pneumatic cylinders (2x D80x290)
Control valve for minimum/maximum height positions
Detachable ergonomic handle for transport and compact storage
Connection slot for pneumatic tools
