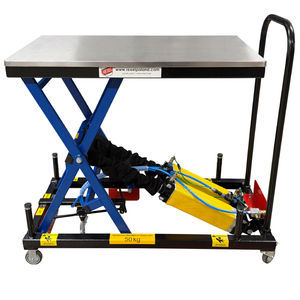

scissor lift table / foot-operated / pneumatic / stationary
160 kg (352.7 lb)
Max.: 1,280 mm
Min.: 320 mm
The table ST-3/R is equipped with a carpet-covered tabletop with sliding rails and adjustable support arms for easy access to the bottom of the furniture.
- This solid construction is based on steel profiles and pneumatic cylinder.
- The pneumatic cylinder is foot-controlled.
- The table has a connection slot for pneumatic tools.
- After turning the table off it blocks automatically (cutting power off does not make the table fold).
- The table can be equipped with a drawer for upholstery tools.
- It has been proven that using our lifting tables decrease the use of energy by 15% in comparison to upholstery trestles.
- An increase in productivity of at least 14% has been observed when employees used our lifting tables instead of regular upholstery trestles.
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 2000 mm x 900 mm (78.74" x 35.43")
Pneumatic cylinder: D125x600
Minimum height: 320 mm (12.59")
Maximum height: 1280 mm (50.39")
Maximum load: 160 kg (352.74 lbs)
