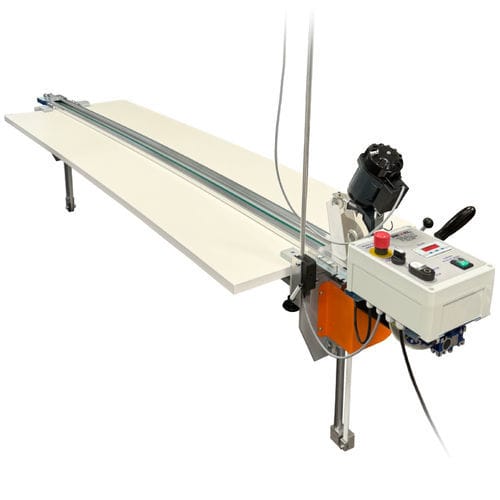

Fabric cutting device OT-2/AH

automaticcircularelectric

Key features

• The OT-2AH semi-automatic cutter with a NTH125W-2AH circular knife is designed for cutting thicker layers of lightweight materials (up to 80 mm) such as quilted fabrics, insulation, wadding, upholstery foam, and for thinner layers of hard-to-process materials like felt or coir mats.
• Use of the cutter increases productivity and ensures fast, accurate end cuts to the required length.
• Can be fitted as an accessory to a standard cutting table, cutting table with spreading device, fabric inspection and rewinder, or fabric rewinder.
• Equipped with an electronic cut counter as standard.
• Cutting tables are manufactured to individual specifications on order.

Description
The OT-2AH is a semi-automatic circular-knife end cutter optimized for heavy-duty trimming and end-cutting of thick materials. High-power drive motors for the knife and feed deliver the torque and feed stability required for demanding substrates, ensuring repeatable, clean cuts on quilted, foamed and insulating materials.

Technical specifications

• Model: OT-2AH
• Cutting width range: 1000 - 3000 mm (39.37" - 118.11")
• Power supply voltage: 230 V
• Cutting knife motor power: 380 W
• Feed motor power: 250 W
• Blade diameter: 125 mm (4.92")
• Blade rotational speed: 1500 RPM
• Cutting cycle time: 8 seconds (+/- 1 second) for material 2000 mm (78.74") wide
