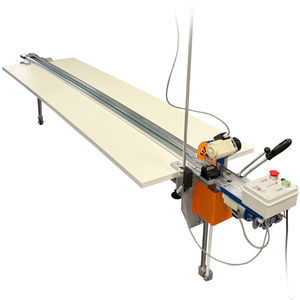

Fabric cutting device OT-1/RH
hand-heldelectric

Fabric cutting device - OT-1/RH - REXEL - hand-held / electric
Fabric cutting device - OT-1/RH - REXEL - hand-held / electric
Fabric cutting device - OT-1/RH - REXEL - hand-held / electric - image - 2
Fabric cutting device - OT-1/RH - REXEL - hand-held / electric - image - 3
Add to favorites
Compare this product
Go to the REXEL website for more information

Characteristics

Application
fabric
Specifications
hand-held, electric

Description

Description
  • The OT-1/RH manual end cutter is designed for trimming and end-cutting of thicker layers of light materials (up to 80 mm) such as quilted fabrics, insulation, polyester wadding, mattress covers and foam.
  • High-torque knife motor and a 125 mm blade (1500 RPM) provide effective cutting of bulky materials and multi-layer stacks.


Applications & integration
  • Can be mounted as an additional unit on cutting tables or fabric inspection machines to increase trimming accuracy and productivity.
  • The work table is supplied separately for individual or custom orders.


Operation
  • Manual cutting mode: operator activates the button on the cutter handle and moves the knife head along the track using the foldable or short handle.
  • Folding handle supports standard width up to 2000 mm; short handle allows maximum cutting width up to 3000 mm.


Technical data
  • Model: OT-1/RH
  • Standard cutting width: 2000 mm (78.74")
  • Maximum cutting width (folding handle): 2000 mm (78.74")
  • Maximum cutting width (short handle): 3000 mm (118.11")
  • Supply voltage: 230 V
  • Knife motor power: 380 W
  • Blade diameter: 125 mm (4.93")
  • Blade rotation speed: 1500 RPM
  • Pneumatic clamp: No


Technical specifications
  • Model: OT-1/RH
  • Cutting width (standard): 2000 mm
  • Maximum cutting width (folding handle): 2000 mm
  • Maximum cutting width (short handle): 3000 mm
  • Supply voltage: 230 V
  • Knife motor power: 380 W
  • Blade diameter: 125 mm
  • Blade rotation speed: 1500 RPM
  • Pneumatic clamp: No
