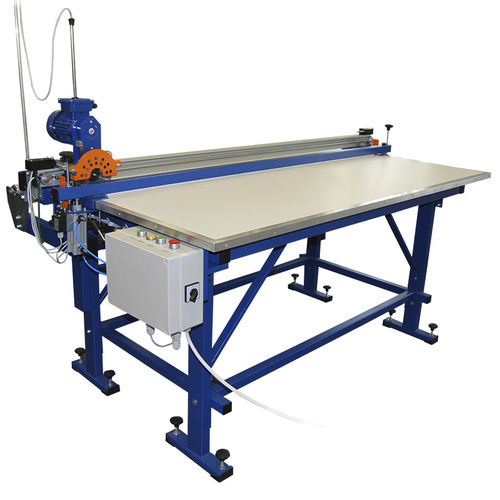

foam cutting machine / for PVC / for fabrics / rotary blade
OT-3

{{requestButtons}}

Characteristics

  • Material:

    foam, for PVC, for fabrics

  • Technology:

    rotary blade

  • Cutting speed:

    0.5 m/s (1.64 ft/s)

Description

Key features:

- The OT-3 is designed so that it could cut thick pieces of material, felt, coir sheets, coverings, and heat insulation fabrics, as well as other materials.
- Knife cutting in slot.
- Pneumatic fabric clamp.
- Two way cutting process (elimination of the idle mode of the knife).
- Pneumatic clamp steered with a joystick.
- Energy-saving: one motor serves for two purposes (one motor for blade rotation and movement).
- Table is supplied separately.

Specifications:

Model: OT-3
Standard cutting width: 2500 mm (98.4")
Maximum cutting width: 2500 mm (98.4")
Voltage: 230 V / 400 V
Cutter motor power: / Gear motor power: 250 W
Blade diameter: 125 mm / 150 mm (4.92" / 5.9")
Blade rotation speed: 1450 RPM
Movement speed: 0.4 m/s (1.31 ft/s)
Working pressure: 3-5 bar
Pneumatic clamp: Yes
