fabric roll rack
LS-1

Add to MyDirectIndustry favorites
fabric roll rack fabric roll rack - LS-1
{{requestButtons}}

Characteristics

  • Applications:

    for fabric

Description

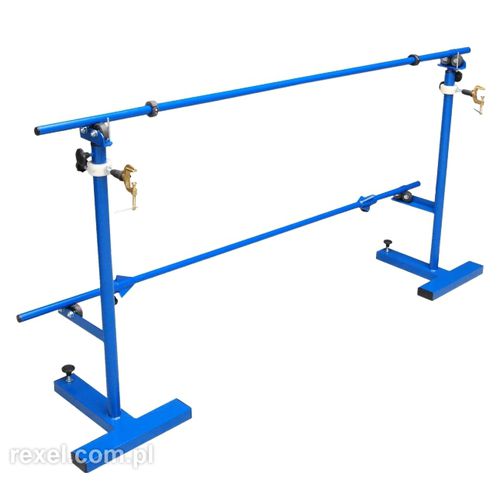

Material roll rack LS-1 is designed for one roll.

Key features:

- Universal roll racks designed for fabric roll storage or feeding.
- Frame made of closed steel profiles and powder-coated tubes.
- Tubes equipped with special cones that can be blocked to fix the roll.
- Tubes are placed in special slots between wheels on bearings.
- (Optional) Special brake system to prevent self-unwinding of the fabric rolls.
- Non-standard roll racks are available on request.

Specifications:

Model: LS-1
Maximum roll width: 1800 mm (70.86")
Maximum roll diameter: 600 mm (23.62")
Maximum roll weight: 40 kg (88.18 lbs)
Maximum roll quantity: 1
Roll brake system (optional): No
