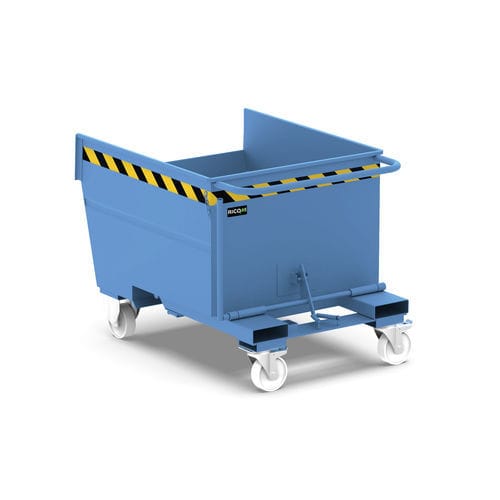

Steel self-dumping hopper LT500 series

for wastefor forkliftsindustrial waste

Overview
Self-dumping hopper for waste and scrap handling, 500 L version. Designed to optimize collection, handling and discharge of machining waste, chips and scrap. Box-section construction suitable for industrial and warehouse operations.

Main features

• Operator-actuated discharge lever operable from forklift without leaving the driver’s seat
• Four wheels Ø150 mm: 2 fixed and 2 swivel with brake for manual movement
• Fork pockets internal dimensions: 170×50 mm for forklift engagement
• Available in a full range of RAL colours for waste identification
• On request: watertight basin, sedimentation grid and discharge tap

Applications
Ideal for collecting, handling and discharging industrial scrap and machining waste such as swarf and chips; suitable for integration into internal logistics and use with forklifts.

Technical specifications

• Model (series): LT500
• SKU / Code: LT500#5012
• Dimensions (L × W × H): 1350 × 920 × 910 mm
• Nominal volume: 490 L
• Rated load capacity: 1000 kg
• Construction: box-section structure suitable for forklift engagement
• Discharge system: lever operated by the operator (compatible with forklift use)
• Manual handling: 4 wheels Ø150 mm (2 fixed, 2 swivel with brake)
• Fork pockets (internal): 170 × 50 mm
• Available colours: Orange RAL2004, Blue RAL5010, Blue RAL5012, Grey RAL7000, Green RAL6011
• Options on request: watertight basin, sedimentation grid, discharge tap
