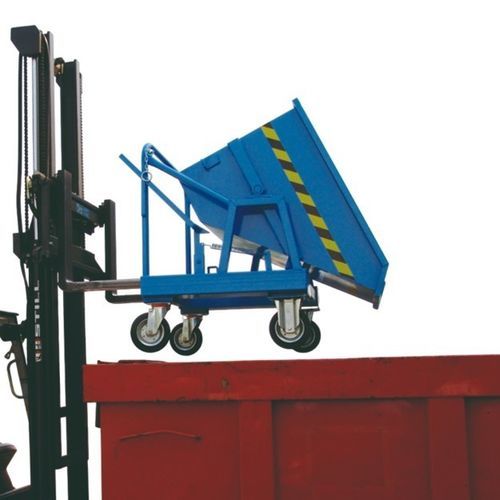

Steel self-dumping hopper Benna Basculante

metalfor forkliftsdebris

Product description
Tilting hopper for waste and scrap collection, capacity 400 L. Designed for collection, handling and discharge of machining swarf, chips and industrial scrap. Built for efficient forklift handling and to streamline internal material logistics.

Main applications

• Collection and temporary storage of industrial waste and scrap
• Integration with forklift workflows for internal logistics
• Handling of metal shavings, cuttings and bulky scrap pieces

Key features

• Operator-actuated lever emptying system operable from the forklift (no need to dismount)
• Manoeuvrable manually and easy to move thanks to 4 wheels Ø 150 mm (2 fixed, 2 swivel with brake)
• Fork pockets internal dimensions 170 × 50 mm for secure inforcamento
• Available in multiple colours for waste identification
• Optional: sealed basin, settling grid and drain valve for liquids

Dimensions
External dimensions: 1300 × 1070 × 935 mm
Length: 1300 mm
Width: 1070 mm
Height: 935 mm

Available colours
Orange RAL2004, Blue RAL5010, Light Blue RAL5012, Grey RAL7000, Green RAL6001

Technical specifications

• Volume: 400 L
• Load capacity: 1000 kg
• Wheels: 4 × Ø 150 mm (2 fixed, 2 swivel with brake)
• Fork pockets (internal): 170 × 50 mm
• Emptying system: lever operated for safe discharge from the forklift
• Finishes/colors: RAL2004; RAL5010; RAL5012; RAL7000; RAL6001
• Options on request: sealed basin; settling grid; drain valve
• Availability: suitable for large quantities (stock levels may vary)
