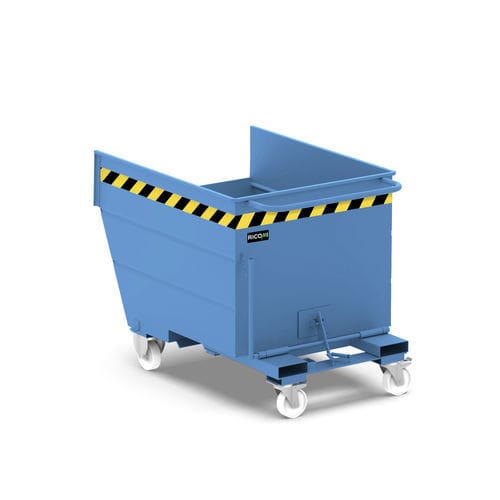

Metal self-dumping hopper LT1000 series

industrial wastefor wastefor forklifts

Description
Tilting hopper for waste and scrap collection, 1000 L version. Designed for the collection, handling and discharge of machining swarf, chips and scrap, with focus on operator safety and optimisation of internal logistics processes.

Main features

• Simple and safe emptying system operated by a lever accessible from the forklift without the operator leaving the cabin
• Four 150 mm diameter wheels: 2 fixed and 2 swivel with brake for easy manual handling
• Fork pockets for forklift insertion, internal dimensions 170 × 50 mm
• Available colour range to identify different waste streams
• Optional on request: sealed basin, settling grid and drain tap for liquids

Specifications

• Model / series: LT1000 series
• SKU: LT1000#5012 (variant shown)
• Dimensions (L × W × H): 1550 × 1070 × 1210 mm
• Load capacity: 1700 kg
• Nominal volume: 1000 L (indicated volume: 1070 L)
• Fork pockets (internal): 170 × 50 mm
• Wheels: 4 × Ø150 mm (2 fixed + 2 swivel with brake)
• Available colours: Orange RAL2004, Blue RAL5010, Blue RAL5012, Grey RAL7000, Green RAL6011

Applications and use

• Collection, transport and discharge of industrial waste, machining chips and scrap
• Integration with forklift operations and internal logistics workflows
• Suitable for workshops, warehouses and recycling areas
