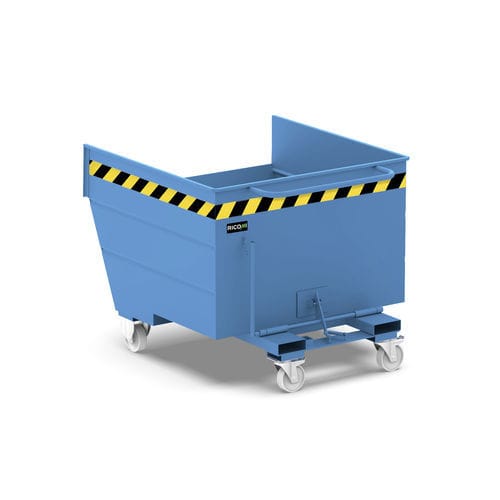

Forklift self-dumping hopper LT1350 series

for wasteliftingfor scrap

Overview
Tipping bin for collection, handling and discharge of waste and scrap, version 1350 L. Designed for machining swarf, chips and metal scrap, it streamlines internal material handling and controlled emptying with forklift operation.

Key features

• Capacity: 1350 L (product version)
• Simple and safe emptying system operated by a lever accessible to the operator (no need to leave the forklift)
• Easy to manoeuvre manually thanks to 4 wheels: 2 fixed and 2 swivel with brake
• Forklift pocket (internal dimensions): 170 × 50 mm
• Complete range of colours to match different waste streams
• On request: liquid-tight basin, sedimentation grid and drain tap

Color variants

• Orange RAL2004
• Blue RAL5010
• Blue RAL5012
• Gray RAL7000
• Green RAL6011

Dimensions
1550 × 1320 × 1210 mm

Recommended use
Collection and handling of industrial waste, scrap and machining swarf; use with forklifts for controlled discharge; suitable for workshops, production plants and collection centres.

Technical specifications

• Nominal volume: 1320 L
• Rated load: 2000 kg
• Length: 1550 mm
• Width: 1320 mm
• Height: 1210 mm
• Product code (SKU): LT1350#5012
