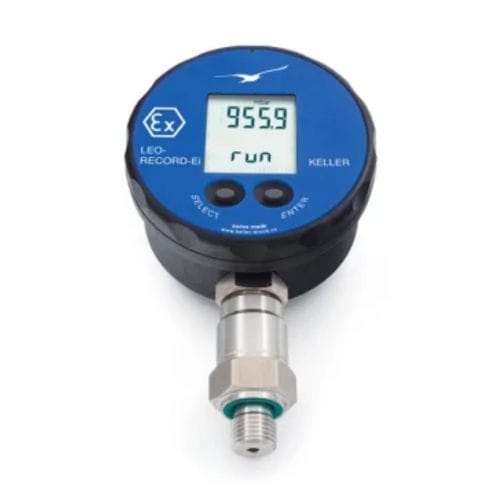

Paperless recorder LEO-RECORD
digitalpressuretemperature

paperless recorder
paperless recorder
paperless recorder
paperless recorder
Add to favorites
Compare this product


Characteristics

Type
digital, paperless
Measured physical value
temperature, pressure
Applications
display, data logger, for PC, for long-term measurements
Other characteristics
inherently safe, IP65

Description

LEO-RECORD is a self contained battery powered instrument with digital display designed to record pressure and temperature over extended time intervals. Through the RS485 interface the data logger can be connected to a computer for configuration and for acquiring the recordings. Comes complete with software and accessories. Advantages High measurement accuracy, resolution and robustness High data security through the use of a non-volatile memory Display of current pressure and recording status Recording of pressure and temperature Simple and well structured configuration and data reading software (Logger 4.x) for PC or PDA The combination of event-controlled logging with interval logging prevents unnecessary data logging (i.e. you only log pressure changes…) The installation data (and comments) of the measuring station can be stored in the instrument Pressure is measured and displayed once per second (shortest interval). The upper part of the display indicates the current pressure, the lower part of the display shows the recording status. All versions of LEO-RECORD have two operating buttons. The left key is used to turn on the instrument and to select the functions and units of pressure measurement. The right key executes the selected function or unit of measure. Functions Possibility to select numerous pressure units 5 custom pressure units, configurable via software Zero point adjustment via buttons The «Record» function can be started and stopped manually Ability to configure different recording functions Options Other compensated pressure ranges Other compensated temperature ranges Parts in contact with the middle finger in Hastelloy, Inconel 718 or titanium
