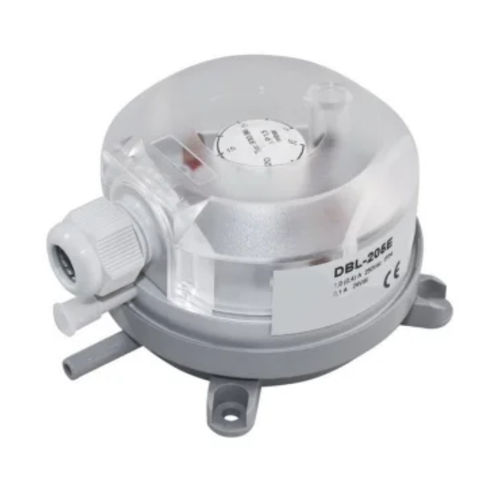

Mechanical pressure switch DBL series

differentialSPDTfor liquids

The DBL differential pressure switch detects the difference between two pressures applied in two environments with different pressures. Thanks to their constructive simplicity, based on mechanics, differential pressure switches are instruments that do not need to be electrically powered and that are mainly installed on systems or equipment, to prevent failures or malfunctions that are dangerous for the system. To be used in civil, commercial or industrial environments on air conditioning and ventilation systems for: control of clogging of filters; check the correct functioning of the filters; control of depression and overpressure; power failure of batteries in the absence of air. PRODUCT FEATURES Principle of measurement - Pressure Informations measured - Pressure Detection type - Switch Explosion protection - Safe zone Hysteresis - 0,15 ± 15% mBar DETAILS OF THE SIGNAL INPUTS AND OUTPUTS All signal outputs available - SPDT Switches Signal Output Type - Electrical switch Details of the signal outputs - microinterruttore con contatti SPDT REGISTRY FEATURES Display - No Touchscreen - No ELECTRICAL DATA Type of electrical connection - Screw terminals Reverse polarity protection - No Status LED - None MECHANICAL DATA Process connection type - Nozzle Diameter process connection - 6,0 mm Materials in contact with the measured fluid - PVC - Polyvinyl chloride Seal materials - N/D Other housing materials - PVC - Polyvinyl chloride Naval approvals - None Food / pharmaceutical approvals - None Atex approvals - None Laws and regulations - RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive” CE omologation - Yes
