Pressure calibrator HPX

pressure calibrator
pressure calibrator
Add to favorites
Compare this product


Measured physical value

Min.: 0 °C (32 °F)

Max.: 50 °C (122 °F)


Min.: 0 bar (0 psi)

Max.: 700 bar (10,152.64 psi)


3 V

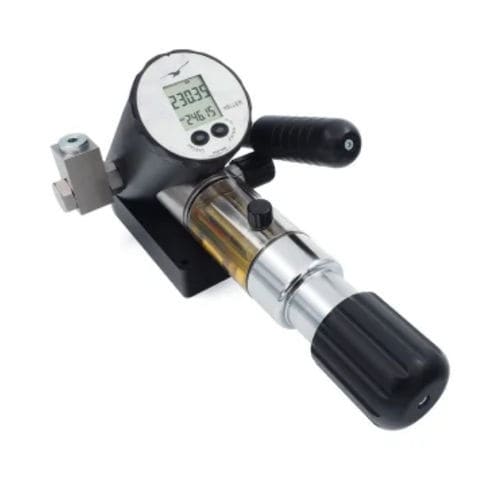

Hydraulic oil, fluid operated Pressure generation up to +700 bar Medium hydraulic oil Complete with accessories and carrying case supplied Power supply 3V battery. Degree of protection IP65 RIELS pressure calibrators are highly accurate calibration instruments which are available for the following pressure ranges: -0,85…10 bar (LPX), -0,85…25 bar (MPX) or 0…700 bar (HPX) (special measurement ranges are available on request). The high-pressure calibrator (HPX) is used to generate pressure in order to check and calibrate mechanical and electronic pressure measurement devices with the help of comparative measurements. The pressure generator is accommodated together with the pressure display in a functional housing. The pressure on a test object that is fitted to the calibrator can be built up quickly, and tracking is made easy thanks to the integrated display. Test objects with a G 1/4” thread can be connected directly to the pressure port for the test object. The pressure is built up and adjusted precisely via a screw compressor that is integrated in the device (medium: hydraulic oil). Measurement work is made easier by a wide range of functions, such as setting any desired pressure zero point, display of peak and trough pressure values, or leak measurements.Furthermore, the applied pressure can be displayed directly on a computer via the integrated interface (USB converter), after which it can be saved and processed or managed in any desired manner. The calibrator, including accessories, is supplied in a durable carrying case, making it ideal for assignments in the field
