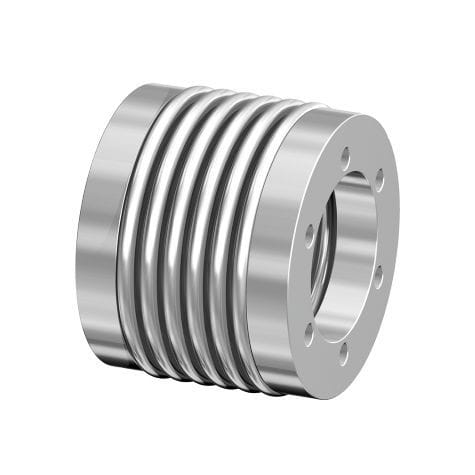

Bellows coupling GWB CKN

pin and bushcompactmetal bellows

'CKN' is the production series which grants customers a maximum of application liberties. The flange mounting offers manifold possibilities to establish a connection with the element or add hubs, flanges and fittings. Depending on the chosen model, CKN has been designed for very high torques of up to 5,000 Nm. Product Characteristics Backlash-free transmission of torque High torsional stiffness, precision of transmission of rotational angle Different torsional stiffness Compact design, low moment of inertia Metal bellows made of stainless steel Simple and safe assembly Compensation of radial, axial and angular misalignment Free of wear, maintenance-free, no downtimes Not sensitive to temperatures between -30°C and +100°C Advantages 100% inspection and traceability through individual marking Higher torques at same dimensions Compact design Extended bore ranges Customer-specific solutions Higher safety in application, e.g. no wrong screw tightening torques Backlash-free Metal Bellows Coup­lings are used in the sector of mechanical engineering, where a torque or a rotary motion has to be transmitted from shaft to shaft in highest accuracy of angle.
