Flexible coupling GWE 5106

self-aligningshaftfor spindles

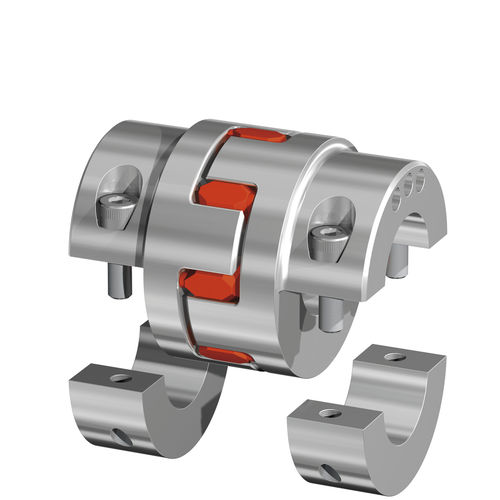

Self-aligning coupling with clamping hubs in split hub design The RINGFEDER® GWE 5106 combined the advantage of the RINGFEDER® GWE 5104 Servo-Insert Coupling with an easy installation. The clamping hubs in split hub design can be mounted lateral at the aligned shaft extensions. The shaft tolerance should lie within the fit tolerance ‘g6’ to ‘h7’. Product Characteristics Backlash-free Elastomer Jaw Coup­lings RINGFEDER® GWE Backlash-free RINGFEDER® GWE jaw couplings are used in engineering where high positioning precision requires vibration damping in greatly accelerated processes and the use of plug-in coupling solutions is preferred. Advantages Backlash-free, through pre-stressing Pluggable Vibration damping Compensation of radial, axial and angular misalignment Electrically isolating Applications Encoder Precision drives Feed drives Grinding and milling spindles Machine tools Packing machines Robotics Transfer lines Multi-spindle heads Wood processing equipment Textile machinery Conveying equipment
