Shrink disc SKDZ

Overview

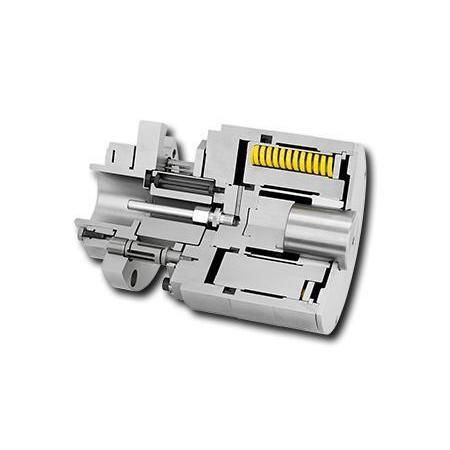

Pneumatically or hydraulically released clamping coupling for printing rollers in printing presses, designed for secure mounting and rapid release of printing cylinders.

Features

• Clamping diameter range: 40 mm to 70 mm
• High radial runout accuracy
• High torsional rigidity
• High axial rigidity
• Extended insertion depth (adjustable)
• Radial misalignment compensation up to 0.5 mm
• Angular misalignment compensation

Available sizes / Webshop (selection)
Product; Article number; Weight [kg]; Lmin [mm]; Lmax [mm]; Lmin_step [mm]; dmin [mm]; dmax [mm]; dmin_step [mm]; Delivery time; Price/piece (excl. VAT)
SKDZ 10; 4179-075020-000000; 28.9; Lmin (min. 47); Lmax 62; Lmin_step 1; dmin (min. 40); dmax 60; dmin_step 0.5; Delivery time: 20 Days; Price: €6,508.00
SKDZ 20; 4179-085007-000000; 30.5; Lmin (min. 47); Lmax 62; Lmin_step 1; dmin (min. 60); dmax 70; dmin_step 0.5; Delivery time: 20 Days; Price: €7,042.00

Technical specifications

• Manufacturer: RINGSPANN
• Designation: SKDZ series
• Application: Clamping of printing rollers in printing presses
• Clamping diameter range: 40 mm – 70 mm (depending on size)
• True running accuracy: High
• Torsional rigidity: High
• Axial rigidity: High
• Insertion depth: Extended (adjustable Lmin/Lmax; Lmin step 1 mm)
• Radial misalignment compensation: up to 0.5 mm
• Angular misalignment compensation: yes
• Delivery time ex works (standard for orders up to 2 pcs): 20 Days
• Typical webshop price examples (excl. VAT): SKDZ 10 = €6,508.00 / piece; SKDZ 20 = €7,042.00 / piece
