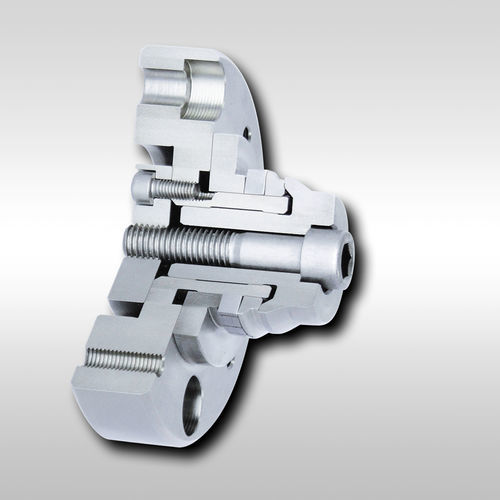

Pull-back turning chuck LBDF series
Add to favorites
Compare this product
Characteristics
- Other characteristics
- pull-back
- Outer diameter
Max.: 140 mm
(6 in)Min.: 18 mm
(1 in)
Description
Bonded Disc Pack Flange Mandrels; as Complete Clamping Fixture
Features
Features
- High true running accuracy ≤ 0,01 mm
- Permissible component tolerance up to IT11
- Pull-back against external backstop surface or external backstop ring by the customer
- For thin-walled or solid components
- Hand clamping optional possible
- Impervious to ingress of foreign objects due to the rubberized slots in the Bonded Disc Pack
VIDEO
Catalogs
LBDF series
2 Pages
