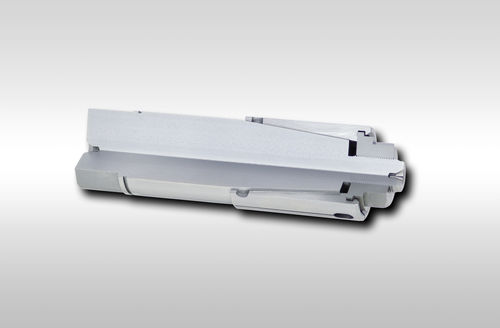

Collet mandrel BKDI seriespull-back
Add to favorites
Compare this product
Characteristics
- Clamping method
- collet
- Other characteristics
- pull-back
- Clamping range
Max.: 132 mm
(5.2 in)Min.: 11.9 mm
(0.47 in)
Description
Taper Collet Centre Mandrels; as Complete Clamping Fixture
Features
Features
- High true running accuracy ≤ 0,01 mm
- Permissible component tolerance up to IT15
- Pull-back against external backstop ring by the customer
- For thin-walled or solid components
- For hand clamping
