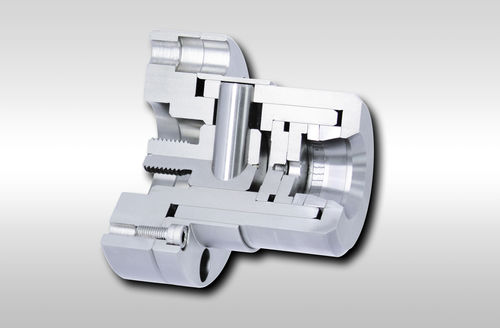

Power chuck LAFF serieslathepull-back
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Other characteristics
- lathe, pull-back
- Outer diameter
Max.: 80 mm
(3 in)Min.: 7 mm
(0 in)
Description
Bonded Disc Pack Flange Chucks; as Complete Clamping Fixture
Features
Features
- High true running accuracy ≤ 0,01 mm
- Permissible component tolerance up to IT11
- Short or long clamping length possible
- Pull-back against shoulder ring
- For thin-walled or solid components
- Impervious to ingress of foreign objects due to the rubberized slots in the Bonded Disc Pack
Catalogs
LAFF series
2 Pages
