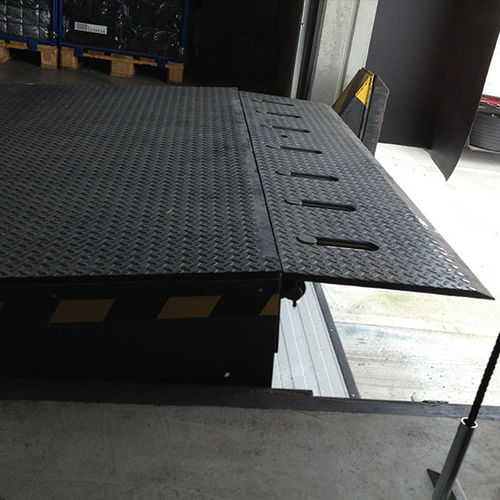

Hydraulic dock leveler G 9000

hydraulically-operatedtelescopic

Product overview
The hydraulic dock leveller with a 500 mm telescopic lip, model G 9000, provides flexible solutions for end loads and variable vehicle widths. The telescopic lip extends onto the vehicle bed with precise control and runs on four maintenance-free roller bearings to reduce friction. A tapered lip option improves alignment for wider vehicles. The platform (standard 8 mm deck plate) is lifted by two main cylinders with built-in velocity fuses for free-fall protection. Micro-processor controls enable adjustable operation and return-to-dock functionality for safe forklift cross-traffic. Available as dock box and hang-in frame configurations.

G 9000 Features and Benefits

• Micro-processor controls with return to dock position — allows easy adjustment to meet specific operating requirements; standard return-to-dock improves safety for forklift cross-traffic. Forced lip retraction if nominal width is over 2000 mm.
• Durable platform construction — box construction with welded support beams and anti-slip deck plate (tread plate).
• Compensation for canted truck beds — compensates up to 100 mm and remains flush with the rear of the pit.
• Telescopic lip — standard 500 mm lip with four maintenance-free roller bearings to reduce friction; tapered lip for nominal widths over 2000 mm; optional telescopic sliding segments available.
• Smooth transition — constant-radius rear hinge, two-point crown control on the front lip hinge and extended lip chamfer for smooth transitions for operators, forklifts and goods.
• Reliable hydraulic system — automatic height adjustment with two main lifting cylinders fitted with built-in velocity fuses (free-fall protection); power pack located at front of platform for easy maintenance.
• Lip cylinder — lip extended by a double-acting lip cylinder for controlled operation.
• Maintenance support bolts — secure the platform and lip during service and maintenance.
• Integral toeguard — full-range toeguard with painted yellow/black warning stripes.

Characteristics / Technical specifications

• Model: G 9000
• Telescopic lip nominal length: 500 mm (standard)
• Platform deck plate thickness (standard): 8 mm
• Compensation for canted truck beds: up to 100 mm
• Lip design: telescopic with four maintenance-free roller bearings; tapered lip for nominal widths over 2000 mm; optional telescopic sliding segments
• Lifting system: two main lifting cylinders with built-in velocity fuse (free-fall protection)
• Lip actuation: double-acting lip cylinder
• Controls: adjustable micro-processor controls with return-to-dock functionality; forced lip retraction if nominal width > 2000 mm
• Safety features: return to dock position, velocity fuse free-fall protection, full-range toe guards with painted yellow/black warning stripes, two maintenance support bolts
• Power pack location: fitted to front of platform for easy maintenance
• Available configurations: dock box model and hang-in frame model

Sales and availability
This product may not be sold in all countries. Contact your local Rite-Hite representative for availability.
