Hydraulic dock leveler G 8300

swing-lip

Product overview

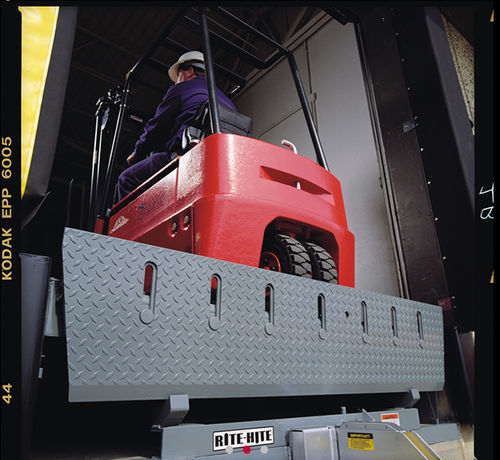

Hydraulic Safe-T-Lip dock levellers provide continuous protection at unmanned loading docks by deploying a 130 mm high Safe-T-Lip barrier that stops a 45 kN forklift at 5 km/h. The G 8300 integrates automatic lip positioning, hydraulic height compensation and robust platform construction for demanding industrial loading applications.

G 8300 features and benefits

• 130 mm Safe-T-Lip barrier designed to stop a 45 kN forklift at 5 km/h; barrier is automatically positioned when the leveller is returned to stored position.
• Standard lip length 450 mm (tapered lip if nominal width > 2000 mm) and retractable lip design to allow full unobstructed end-load access.
• Microprocessor controls with return-to-dock positioning (standard/option configurable) to support safe forklift cross-traffic and tailored operating sequences.
• Relay control option for simpler installations without return-to-dock function.
• Durable box-platform construction with welded support beams and anti-slip (tread) deck plate for reliable load support.
• Smooth transitions: constant-radius rear hinge, two-point crown control on the front lip hinge and extended lip chamfer for safe vehicle and goods transfer.
• Compensation for canted truck beds up to 100 mm while remaining flush with the pit rear edge.
• Reliable hydraulic lift system with two main lifting cylinders featuring built-in velocity fuse (free-fall protection) and a power pack mounted to the platform front for easy maintenance.
• Double-acting lip cylinder for positive lip extension and retraction.
• Maintenance support strut to secure platform and lip during service.
• Integral toeguard with painted yellow/black warning stripes for perimeter protection.

Technical specifications

• Model: G 8300
• Barrier height: 130 mm Safe-T-Lip
• Design load resistance: stops a 45 kN forklift at 5 km/h
• Standard lip length: 450 mm (tapered lip if nominal width > 2000 mm)
• Compensation for canted truck beds: up to 100 mm
• Platform construction: box construction with welded support beams and anti-slip (tread) plate
• Lip operation: retractable lip; lip extended by double-acting lip cylinder
• Lift system: two main lifting cylinders with built-in velocity fuse (free-fall protection); reliable hydraulic system with automatic height adjustment
• Controls: microprocessor controls with return-to-dock positioning (configurable); relay controls available
• Service features: power pack mounted to platform front for easy maintenance; maintenance support strut provided
• Safety features: full-range toeguards, painted yellow/black warning stripes, automatic Safe-T-Lip positioning when stored
