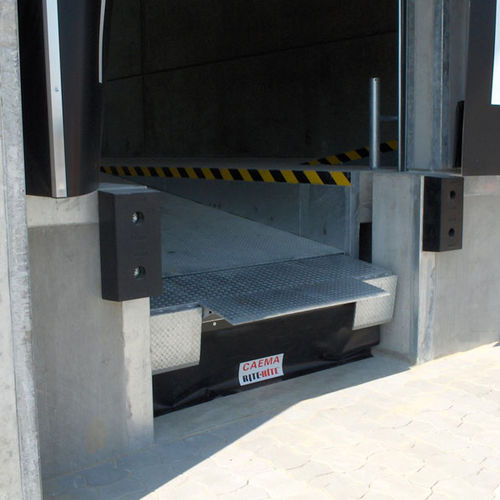

Hydraulic dock leveler G 9200

hydraulically-operatedelectronictelescopic

Product description
The FLEXIDOCK G 9200 is a hydraulic dock leveller with a segmented telescopic lip designed for combined loading/unloading of small vehicles (vans) and standard trucks/trailers. The leveller can be configured for specific dock layouts and vehicle types. The control box features a selector switch for small-vehicle or standard-truck operation. A 1000 mm to 1200 mm midsection of the telescopic lip is provided and the midsection can be extended up to 1000 mm and lowered onto the small vehicle bed. When the small-vehicle mode is selected, hydraulic weight reduction limits the load on the vehicle bed. PLC controls include a "follow" function to maintain lip contact with the vehicle bed and an automatic return-to-dock position.

G 9200 Features and Benefits

• Combined operation for vans and standard trailers in a single leveller for efficient dock utilization.
• PLC control with selector switch for small-vehicle or standard-truck modes; automatic return to dock position and "follow" operation to keep the lip in contact with the vehicle bed.
• Segmented telescopic lip of 3 segments: full-width lip for standard trucks, reduced midsection (1000–1200 mm) for small vehicles.
• Smooth transitions ensured by a constant-radius rear hinge, two-point crown control on the front lip hinge, and an extended lip chamfer.
• Hydraulic weight-reduction mode for small vehicles to reduce load on the vehicle bed and limit capacity.
• Optional light communication system for protection where dock bumpers cannot be applied due to low dock height.

Technical specifications

• Model: G 9200
• Product family: Flexidock Hydraulic Dock Leveller with Telescopic Lip
• Telescopic lip: segmented, 3 segments
• Midsection width of telescopic lip: 1000 mm to 1200 mm (midsection selected for small vehicles)
• Midsection extension: up to 1000 mm
• Control system: PLC controls with "follow" operation and automatic return-to-dock; control box with selector for small-vehicle or standard-truck/trailer operation
• Hydraulic features: hydraulic weight reduction for small-vehicle mode (reduces load on vehicle bed and limits capacity)
• Transition features: constant-radius rear hinge, two-point crown control on front lip hinge, extended lip chamfer
• Optional equipment: light communication system for sites where dock bumpers cannot be used
