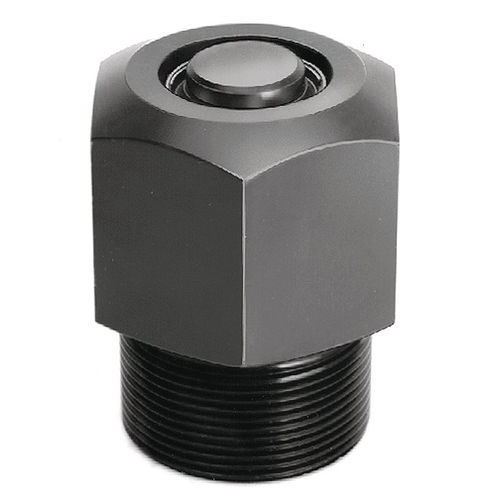

Threaded body cylinder B1.4301
hydraulicpistonspring-return

threaded body cylinder
threaded body cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
piston
Configuration
spring-return
Applications
clamping
Other characteristics
threaded body
Stroke

4 mm, 6 mm, 12 mm, 16 mm
(0.157 in, 0.236 in, 0.472 in, 0.63 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 500 bar
(7,251.9 psi)

Rod diameter

5 mm, 8 mm, 10 mm, 16 mm, 20 mm
(0 in, 0 in, 0 in, 1 in, 1 in)

Force

Min.: 2.5 kN

Max.: 40 kN

Description

B1.4301 Threaded-body cylinders B1.4301 Threaded-body cylinders single acting with spring return with wiper short version max. operating pressure 500 bar piston diameter: 8 .. 32 mm rod diameter: 5 .. 20 mm stroke: 4 .. 16 mm max. push force: 2.5 .. 40 kN external thread: M16 .. M42
