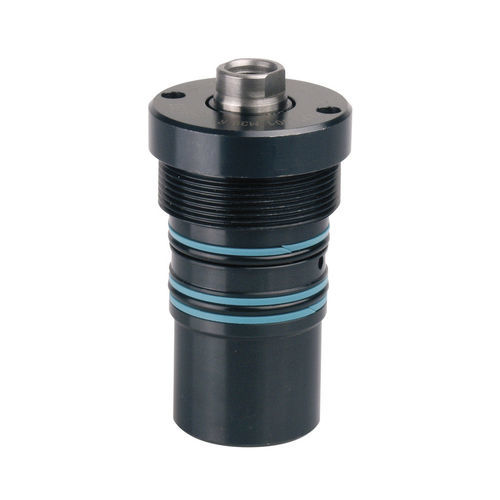

Threaded body cylinder B1.470hydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Applications
- clamping
- Other characteristics
- threaded body
- Stroke
16 mm, 20 mm, 25 mm, 32 mm, 40 mm
(0.63 in, 0.787 in, 0.984 in, 1.26 in, 1.575 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 500 bar
(7,251.9 psi)- Rod diameter
10 mm, 12 mm, 16 mm, 20 mm, 25 mm
(0 in, 0 in, 1 in, 1 in, 1 in)- Force
Min.: 10 kN
Max.: 62.8 kN
Description
B1.470 Threaded-body cylinders
B1.470 Threaded-body cylinders
double acting
max. operating pressure 500 bar
piston diameter: 16 ..40 mm
rod diameter: 10 .. 25 mm
stroke: 16 .. 40 mm
max. push force: 10.0 .. 62.8 kN
external thread: M26.. M60
