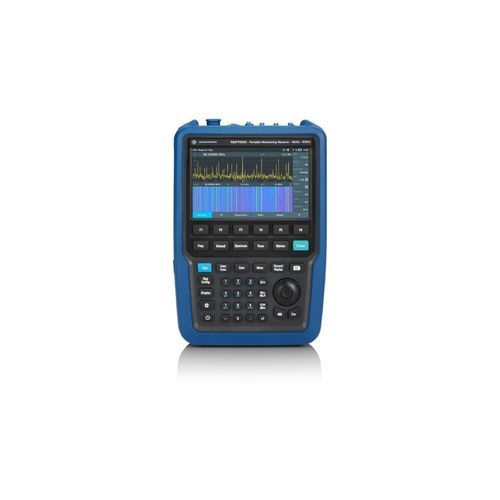

Radio receiver R&S®PR300

digitalGNSSmonitoring

Overview
The R&S®PR300 is a portable spectrum monitoring and single‑channel direction‑finding receiver for field spectrum operations, interference hunting, direction finding and geolocation. Base coverage is 8 kHz to 8 GHz; coverage can be extended to 20 GHz or 33 GHz with appropriate handheld antennas and downconverters. The receiver supports up to 125 MHz real‑time bandwidth (option) and a segmented scan architecture while maintaining handheld portability.

Key facts

• Operational range: 8 kHz–8 GHz (expandable to 20 GHz / 33 GHz with antenna downconverters)
• Real‑time bandwidth: up to 125 MHz (option R&S®PR300‑ZS)
• Panorama scan speed: >500 GHz/s
• Segmented spectrum scans: up to 4 non‑continuous segments
• CI‑based single‑channel DF with sub‑degree accuracy (with R&S®ADDx07)

Features & benefits

• Dual‑channel digital downconverter (DDC) and advanced DSP for simultaneous monitoring and uninterrupted demodulation.
• Parallel time‑ and frequency‑domain analysis (zero‑span) and time‑gated spectrum for TDD networks.
• Segmented scan to monitor non‑contiguous bands persistently.
• Multiple scan modes (PSCAN, HSCAN, FSCAN, MSCAN) with flexible trigger options for surveillance workflows.
• Recording and replay of spectrum traces, measurement results and audio; mapping and geotagging with triangulation functions.
• Software options for polychrome display, interference analysis, modulation and spectral measurements, GNSS timestamping and field strength measurement.

Available model
R&S®PR300 | Order number: 4502.8896.02 | Direction finding antenna: yes | Automatic DF: yes | Supports CI‑based single‑channel DF accurate to <1° when used with R&S®ADDx07 antennas.

Available software options

• R&S®PR300‑PS (4502.8950.02) — Panorama Scan: fast full‑range spectrum scan.
• R&S®PR300‑PC (4502.8967.02) — Polychrome Spectrum: color‑coded occurrence display.
• R&S®PR300‑DF (4502.8996.02) — Direction finding option: correlative interferometer single‑channel DF.
• R&S®PR300‑IR (4502.9040.02) — Trace recording & replay.
• R&S®PR300‑IA (4502.9011.02) — Automatic interference analysis.
• R&S®PR300‑MM (4502.9057.02) — Modulation measurements (ITU compliant).
• R&S®PR300‑MAP (4502.8980.02) — Mapping & geotagging.
• R&S®PR300‑SPM (4502.9063.02) — Spectral measurement tools.
• R&S®PR300‑GNSS (4502.9086.02) — Internal GNSS option with timestamping.
• R&S®PR300‑FS (4502.8973.02) — Field strength measurement.
• R&S®PR300‑ZS (4502.9028.02) — Time domain measurement (up to 125 MHz RTBW).
• R&S®PR300‑VSF (4502.9092.02) — Baseband video spectrum & frequency counter.

Handheld antennas (examples)

• R&S®HE400 — Handheld directional antenna 8 kHz–8 GHz; switchable LNA, electronic compass and GNSS; automatic module recognition.
• R&S®HE400DC — Handheld directional antenna with downconverter: extends reception to 20 GHz.
• R&S®HE800‑DC30 — Handheld directional antenna with downconverter: extends reception to 33 GHz.

Direction finding antennas (examples)

• R&S®ADD207 / ADD207P — Compact UHF/SHF DF antenna: 600 MHz–6 GHz (vehicle or tripod mounting).
• R&S®ADD307 — Collapsible VHF/UHF DF antenna: 20 MHz–690 MHz for mast or tripod.
• R&S®ADD317 — VHF/UHF DF antenna for mast installation: 20 MHz–690 MHz.

Technical specifications

• Base frequency range: 8 kHz–8 GHz (expandable to 20/33 GHz with specific antenna downconverters)
• Real‑time bandwidth: up to 125 MHz (option)
• Panorama scan speed: >500 GHz/s
• Segmented scan: up to 4 non‑continuous segments
• Direction finding: CI‑based single‑channel DF, accuracy <1° with R&S®ADDx07
• Digital architecture: dual‑channel DDC and high‑performance DSP
• Scan modes: PSCAN, HSCAN, FSCAN, MSCAN
• Use cases: spectrum monitoring, interference hunting, DF, geolocation, field inspections and signal analysis
