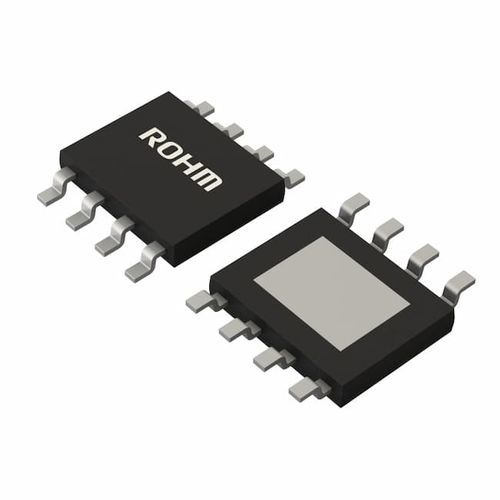

Isolated Type Fly-back Converter IC with Integrated Switching MOSFET for Automotive
BD7F205EFJ-C is an opto-coupler-less isolated flyback converter. Feedback circuit by optocouplers or the auxiliary winding of transformers becomes unnecessary, contributing to reduction of set parts. Furthermore, the adoption of original adapted ON-time control technology enables fast load response. In addition, the various protection function realizes the designs of isolated power supply application for high reliability.
AEC-Q100 Qualified(Grade 1) No Need for Optocoupler and Third Winding of Transformer Set Output Voltage with Two External Resistors and Ratio of Transformer Turns Adopt of Original Adapted ON-Time Control Technology Fast Load Response High Efficiency at Light Load Mode(PFM Operation) Shutdown Function / Enable Control Built-in 60V Switching MOSFET Frequency Spectrum Spread Soft Start Function Load Compensation Function Various Protection Function
Input Low Voltage Lockout(UVLO)
Over Current Protection(OCP)
REF Pin Open Protection(REFOPEN)
Short Circuit Protection(SCP)
Battery Short Protection(BSP) HTSOP-J8 Package
