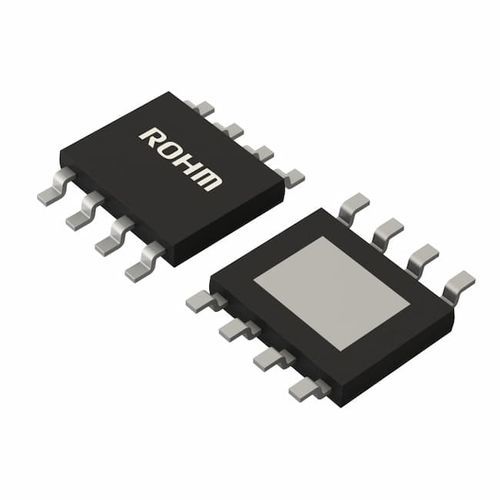

Power DC/DC converter BD9E300UEFJ-LB(E2)

step-downregulatedIC

This product guarantees long life cycle in Industrial market. BD9E300UEFJ-LB(E2) is a synchronous buck switching regulator with built-in power MOSFETs. It is capable of an output current of up to 2.5A. It has a high oscillation frequency of 1MHz while using small inductance value. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily. BD9E300UEFJ-LB is also available as a small reel product with 250 packages.→BD9EU300EFJ-LBH2 This IC uses different production line against series model BD9E300EFJ-LB for the purpose of improving production efficiency. We recommend using this IC for your new development. Electric characteristics noted in Datasheet does not differ between Production Line. In addition, the data of BD9E300EFJ-LB is disclosed for documents and design models unless otherwise specified. Features: Long Time Support Product for Industrial Applications. Synchronous single DC/DC converter. Over-Current Protection. Short Circuit Protection. Thermal Shutdown Protection. Under voltage Lockout Protection. Soft Start. HTSOP-J8 package (Exposed Pad).
