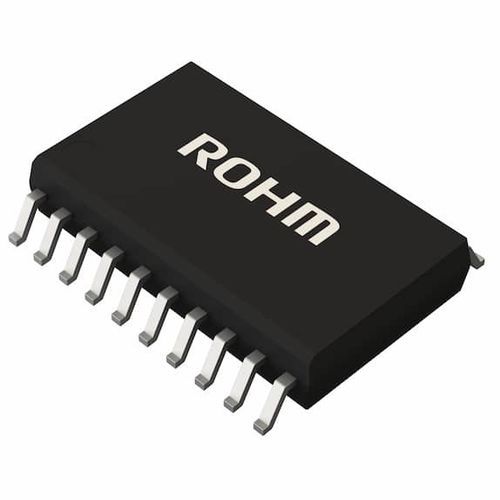

PWM DC/DC converter module BM2P060MF-Z
ICindustrialswitching

PWM DC/DC converter module
PWM DC/DC converter module
Add to favorites
Compare this product


Characteristics

Configuration
IC
Applications
industrial
Other characteristics
switching, PWM
Input voltage

Min.: 11 V

Max.: 60 V

Description

The PWM Type DC/DC Converter for AC/DC provides an optimal system for all products that include an electrical outlet. This IC supports isolated power supply and enables simpler designs of various low power consumption electrical converters. It realizes the high flexibility in power supply design by incorporating a switching MOSFET and with external current detection resistor. This IC can make high efficiency power supply because it has AC low voltage protection function and X capacitor discharge function and operates frequency reduction, minimum ON width adjustment and burst operation at light load. This IC has following various protection functions. AC Low Voltage Protection Function(AC UVLO) X Capacitor Discharge Function VCC Pin Low Voltage Protection(VCC UVLO) PWM Type Current Mode Control Frequency Reduction Function Burst Operation at Light Load Burst Voltage Setting Function Minimum ON Width Adjustment at Light Load Soft Start Function FB Pin Overload Protection Function(FB OLP) Over Current Protection Function by cycle Over Current Detection Compensation Function by AC Voltage Detection External Stop Function Dynamic Over Current Protection Leading Edge Blanking Function
