Switching DC/DC converter module BD9P608MFF-CSMDbuckpulse width modulation
Add to favorites
Compare this product
Characteristics
- Configuration
- SMD
- Electrical characteristics
- buck, pulse width modulation
- Other characteristics
- switching, PWM
- Input voltage
Min.: 3.5 V
Max.: 40 V
- Output voltage
Min.: 0.8 V
Max.: 8.5 V
Description

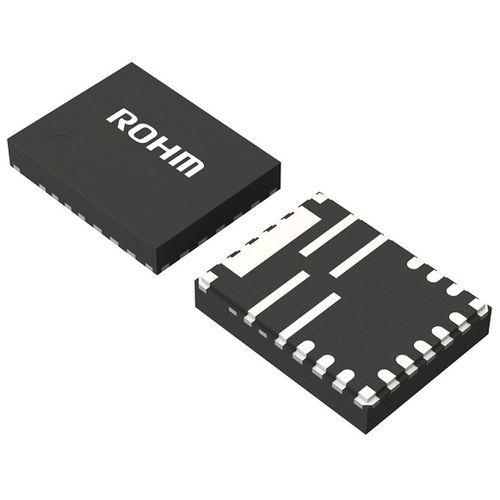

BD9P608MFF-C is current mode synchronous buck DC/DC converter integrating POWER MOSFETs.
Features:
Nano Pulse Control™AEC-Q100 Qualified (Grade 1)Minimum ON Pulse 50 ns (Max)Synchronous Buck DC/DC Converter Integrating POWER MOSFETsSoft Start FunctionCurrent Mode ControlReset FunctionLight Load Mode (LLM)Forced Pulse Width Modulation (PWM) ModePhase Compensation IncludedSelectable Switching FrequencySpread Spectrum SwitchingExternal Synchronization FunctionOver Current Protection (OCP)Input Under Voltage Lockout (UVLO) ProtectionThermal Shutdown (TSD) ProtectionOutput Over Voltage Protection (OVP)Short Circuit Protection (SCP)
