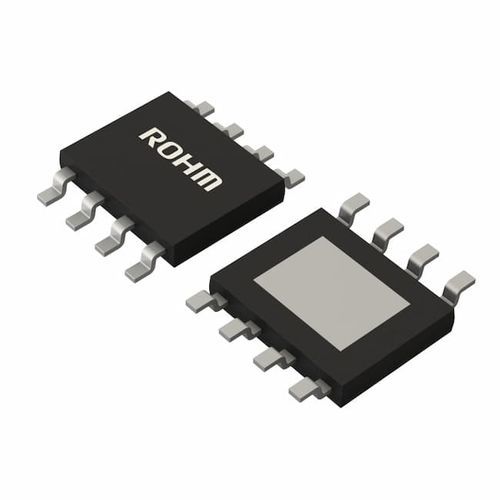

DC motor motor driver BD62130AEFJ

BD62130AEFJ is a built-in 1 channel H bridge motor driver for DC brush motors. This driver can drive high efficiency by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability. Single Power Supply Input (Rated voltage of 36V) Rated Output Current (peak): 3.0A (4.0A) Low ON-Resistance DMOS Output Forward, Reverse, Brake, Stop Direct PWM Control Drive DC Brush Motor Built-in Logic Input Pull-down Resistor Cross-conduction Prevention Circuit Thermal Shutdown Circuit (TSD) Over-current Protection Circuit (OCP) Under Voltage Lock Out Circuit (UVLO) Over Voltage Lock Out Circuit (OVLO) Protects against malfunction when power supply is disconnected (Ghost Supply Prevention function) Adjacent Pins Short Protection Inverted Mounting Protection Micro Miniature, Ultra-thin and High Heat-radiation (exposed metal type) Package
