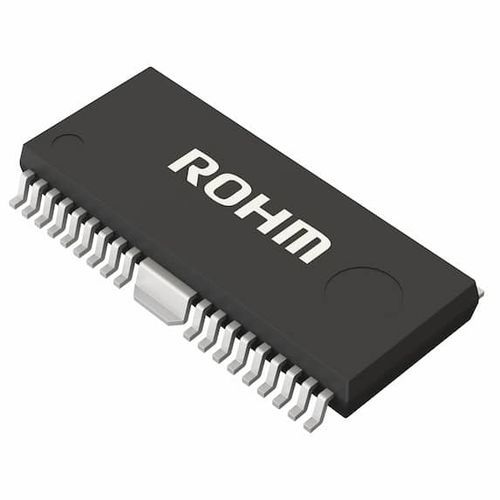

H-bridge motor driver BD63150AFM

for DC motors

BD63150AFM is a built-in channel H-bridge motor driver for DC brush motor. This driver can facilitate low power consumption by direct PWM or PWM constant current control. There are built in protection circuits in this IC. It is possible to output an abnormal detection signal for Wired-OR that notifies each protection circuit operation, which contributes to set high reliability. Single Power Supply Input (rated voltage of 50V) Rated Output Current (peak): 5.0A(6.0A) Low ON-Resistance DMOS Output Forward, Reverse, Brake, Open Power Save Function External PWM Control PWM Constant Current Control (current limit function) Built-in Spike Noise Cancel Function (external noise filter is unnecessary) Driver for DC Brush Motor Built-in logic input pull-down resistor Cross-conduction Prevention Circuit Output detection signal during abnormal states(Wired-OR) Thermal Shutdown Circuit (TSD) Over-current Protection Circuit (OCP) Under Voltage Lock out Circuit (UVLO) Over Voltage Lock out Circuit (OVLO) Ghost Supply Prevention (protects against malfunction when power supply is disconnected) HSOP-M36 package
