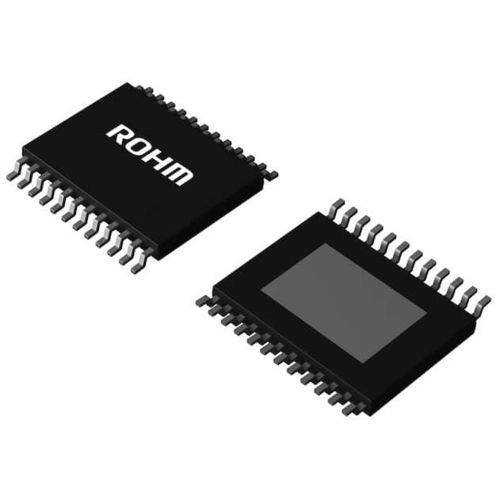

Stepper motor driver BD6290EFV

BD6395FP,BD6393FP,BD6290EFV,BD63960EFV,BD63940EFV,BD63920EFV are stepper motor driver series with PARALLEL-IN drive mode. As for its basic function, it is a low power consumption bipolar PWM constant current-drive driver with power supply's rated voltage of 36V and rated output current of 0.8A, 1.2A, 1.5A. BD6395FP,BD6393FP,BD6290EFV have excitation modes of FULL STEP & HALF STEP &, QUATER STEP mode. Thus making it possible to realize optimum control under a variety of motors. ・Low on-resistance DMOS, rated output current 0.8A ・PARALLEL-IN drive ・QUARTER STEP ・Power-saving function ・TSD(Thermal Shutdown) circuit ・OCP(Over Current Protection) circuit ・UVLO(Under Voltage Locked Out) circuit ・OVLO(Under Voltage Locked Out) circuit ・One power supply system 36V
