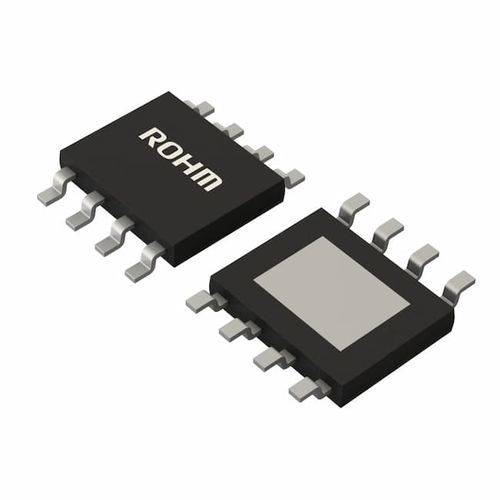

H-bridge motor driver BD62110JEFJ

for DC motors

BD62110JEFJ is a built-in 1 channel H-bridge motor driver for DC brush motors. This driver can facilitate low power consumption by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability. Features: ♦Single Power Supply Input (rated voltage of 36V) ♦Rated Output Current (peak) :1.0A (2.0A) ♦Low ON-Resistance DMOS Output ♦Forward, Reverse, Brake, Open ♦External PWM Control ♦Driver for DC Brush Motor ♦Built-in logic input pull-down resistor ♦Cross-conduction Prévention Circuit ♦Thermal Shutdown Circuit (TSD) ♦Over-current Protection Circuit (OCP) ♦Under Voltage Lock out Circuit (UVLO) ♦Over Voltage Lock out Circuit (OVLO) ♦Ghost Supply Prévention (protects against malfunction when power supply is disconnected) ♦Adjacent Pins Short Protection ♦Inverted Mounting Protection ♦HTSOP-J8 package
