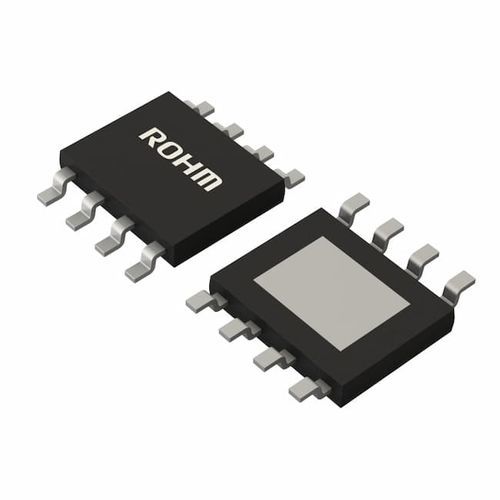

H-bridge motor driver BD62120AEFJ

for DC motors

BD62120AEFJ is a built-in 1 channel H-bridge motor driver for DC brush motors. This driver can facilitate low power consumption by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability. Single Power Supply Input (rated voltage of 36V) Rated Output Current (peak) 2.0A(3.0A) Low ON-Resistance DMOS Output Forward, Reverse, Brake, Open External PWM Control Driver for DC Brush Motor Built-in logic input pull-down resistor Cross-conduction Prevention Circuit Thermal Shutdown Circuit (TSD) Over-current Protection Circuit (OCP) Under Voltage Lock out Circuit (UVLO) Over Voltage Lock out Circuit (OVLO) Ghost Supply Prevention (protects against malfunction when power supply is disconnected) Adjacent Pins Short Protection Inverted Mounting Protection HTSOP-J8 package
